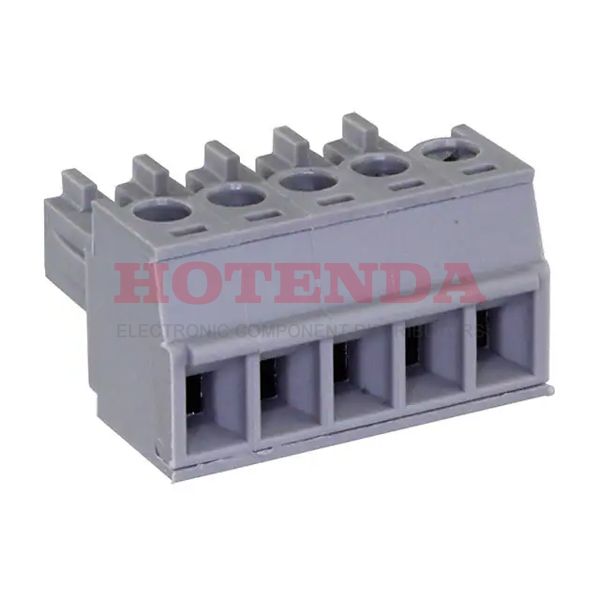

Name: 5434955
Brand: Phoenix Contact
SKU: 5434955
Price: 6.58000 USD
Availability: InStock

new-10%

5434955

Manufacturer part number:5434955

Manufacturer:Phoenix Contact

Description:Bulk 0.150 3.81mm Gray 1 Levels Free Hanging (In-Line) Plug, Female Sockets BCP Polyamide (PA), Nylon Tin

Case Package:SOT-23

Datasheet:5434955 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Number of Pins	5
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Series	BCP
Published	2015
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Type	Plug, Female Sockets
Number of Positions	5
Color	Gray
Pitch	0.150 3.81mm
Insulation Height	0.437 11.10mm
Termination Style	Screw
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Contact Mating Finish	Tin
Voltage - UL	300V
Wire Gauge or Range - AWG	14-30 AWG
Current - UL	8A
Voltage - IEC	320V
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Positions Per Level	5
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	7mm
Current - IEC	8A
Number of Positions Per Level	5
Screw Size	M2
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

5434955 Product Details

5434955 Overview

The mounting type of the device is Free Hanging (In-Line).A Bulk case is used to package the product.A product of the BCP Series, it belongs to the range of products of that series.5 pins are on the device.Free Hanging represents the mounting point for the part.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.
