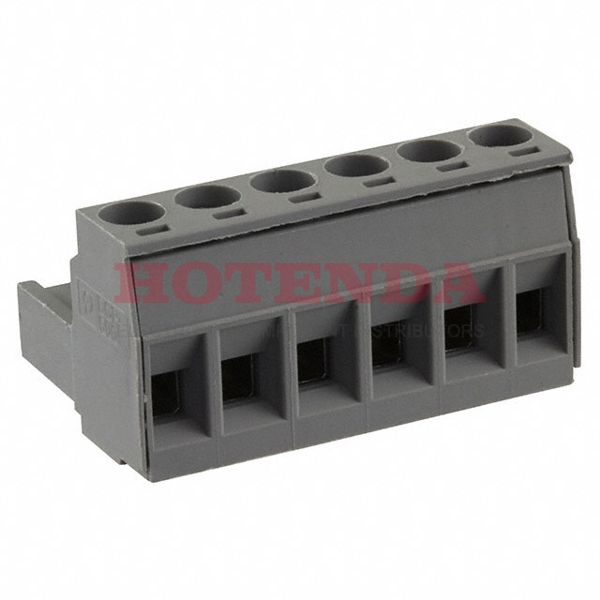

5435349

5435349

5435349

Phoenix Contact

5435349 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

5435349 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 9 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
PackagingBulk
Published 2015
Series BCP
Feature Retention Latches (Non-Wire Side)
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Female Sockets
Number of Positions 6
Color Gray
Number of Rows 1
Additional FeatureSTANDARD: UL 94V-0, PA
Pitch 0.197 5.00mm
Insulation Height 0.591 15.00mm
Reach Compliance Code not_compliant
Termination Style Screw
Voltage 300V
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Number of Ways 6
Safety Approval CB; CUL; IEC; UL; VDE
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 7mm
Current - IEC 12A
Screw Size M3
Wire Cross Section 2.5 mm2
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Lead Free Lead Free
In-Stock:1582 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.455007$0.455007
10$0.429252$4.29252
100$0.404955$40.4955
500$0.382033$191.0165
1000$0.360408$360.408

5435349 Product Details

5435349 Overview


Free Hanging (In-Line) is the mount type.An Bulk case is utilized for packaging the product.The product belongs to the BCP Series.Further, there are features such as STANDARD: UL 94V-0, PA, to name only a few.Several benefits come from the Retention Latches (Non-Wire Side) feature.It is mounted by Free Hanging.It is a part that shares many benefits with other products from the Plug, Female Sockets line.

5435349 Features


BCP series

5435349 Applications


There are a lot of Phoenix Contact 5435349 Terminal Blocks applications.

  • LED municipal outdoor and street lighting
  • Transportation
  • Control panels
  • Refrigeration control
  • Automotive Electronics
  • Energy efficient lighting (LED)
  • Datacom
  • Communication
  • All Electrical Machinery
  • Blowers
