Name: 5441223
Brand: Phoenix Contact
SKU: 5441223
Price: 5.82000 USD
Availability: InStock

new-10%

5441223

Manufacturer part number:5441223

Manufacturer:Phoenix Contact

Description:5441223 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:5441223 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2016
Series	BCP
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)

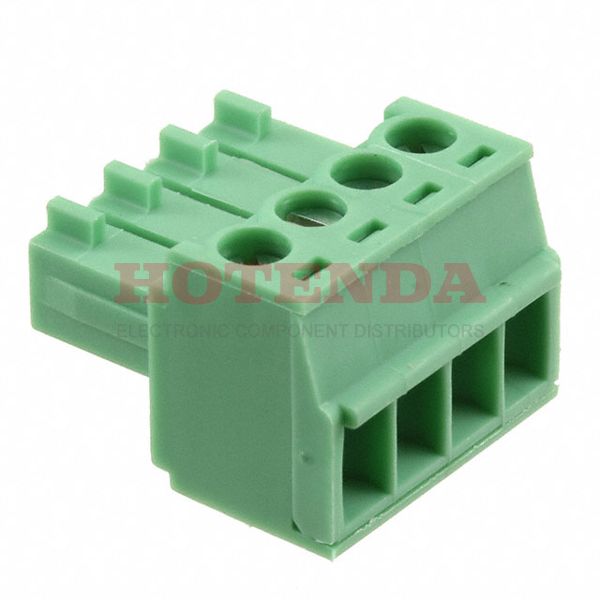

Type	Plug, Female Sockets
Number of Positions	4
Color	Green
Pitch	0.138 3.50mm
Insulation Height	0.437 11.10mm
Reach Compliance Code	not_compliant
Termination Style	Screw
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Contact Mating Finish	Tin
Voltage - UL	300V
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	7mm
Screw Size	M2
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

5441223 Product Details

5441223 Overview

Free Hanging (In-Line) is the mounting type of the device.Packaging is performed using a Bulk case.The product is a part of the BCP Series.This part is mounted by Free Hanging. As with other Plug, Female Sockets products, this part also offers a wide range of benefits.
