5441951

5441951

5441951

Phoenix Contact

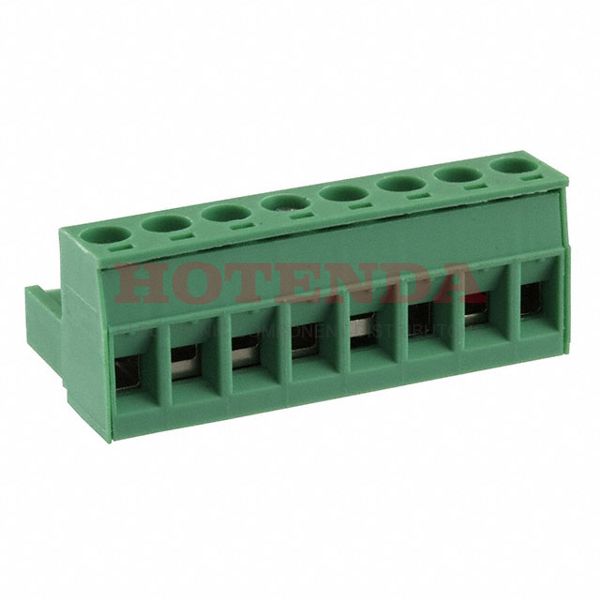

5441951 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

5441951 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 8 Weeks
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
PackagingBulk
Published 2014
Series BCP
Feature Retention Latches (Non-Wire Side)
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Female Sockets
Color Green
Pitch 0.200 5.08mm
Orientation Right Angle
Insulation Height 0.591 15.00mm
Reach Compliance Code not_compliant
Termination Style Screw
Voltage 300V
Max Current Rating 12A
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 7mm
Current - IEC 12A
Number of Positions Per Level 8
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
In-Stock:781 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$3.964817$3.964817
10$3.740393$37.40393
100$3.528673$352.8673
500$3.328937$1664.4685
1000$3.140506$3140.506

5441951 Product Details

5441951 Overview


A Free Hanging (In-Line) mounting type is specified for the device.To package the product, we use a Bulk case.A product of the BCP Series, it belongs to the range of products of that series.Its Retention Latches (Non-Wire Side) feature renders it more powerful in many ways.This part is mounted by Cable, Free Hanging. There are many benefits shared between this part and other Plug, Female Sockets products.

5441951 Features


BCP series

5441951 Applications


There are a lot of Phoenix Contact 5441951 Terminal Blocks applications.

  • Control panels
  • Datacom
  • Measuring & Control Technology
  • Embedded systems
  • Energy efficient lighting (LED)
  • Instrumentation
  • LED municipal outdoor and street lighting
  • Electrical substations
  • Variable speed/frequency drivers
  • Automotive Electronics
