5448242

5448242

5448242

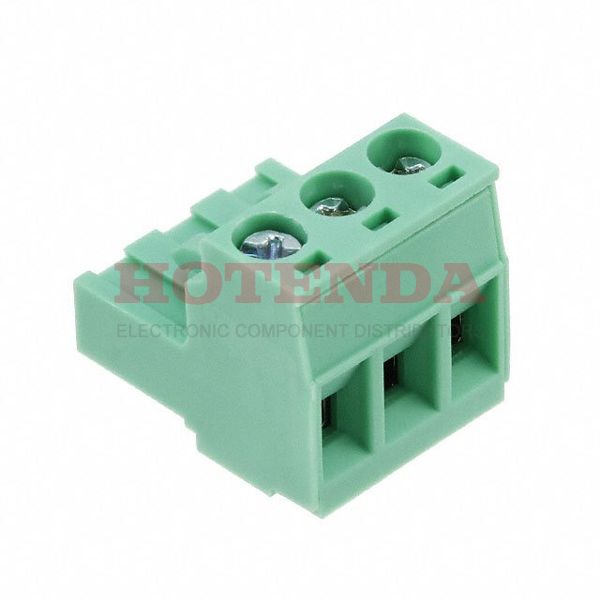

Phoenix Contact

5448242 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

5448242 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 9 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
PackagingBulk
Published 2015
Series BCP
Feature Retention Latches (Non-Wire Side)
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 3
Color Green
Voltage - Rated 320V
Pitch 0.197 5.00mm
Insulation Height 0.591 15.00mm
Reach Compliance Code not_compliant
Current Rating12A
Termination Style Screw
Voltage 300V
Number of Levels 1
Current 15A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 7mm
Current - IEC 12A
Screw Size M3
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:2137 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.225365$0.225365
10$0.212608$2.12608
100$0.200574$20.0574
500$0.189221$94.6105
1000$0.178510$178.51

5448242 Product Details

5448242 Overview


This device has a Free Hanging (In-Line) mounting type.Packaging the product involves using a Bulk case.It belongs to the BCP Series of products.In many ways, its Retention Latches (Non-Wire Side) feature makes it more powerful.By Free Hanging, the part is mounted.With this part, you get a lot of benefits that you won't find in other Plug, Female Sockets products.

5448242 Features


BCP series

5448242 Applications


There are a lot of Phoenix Contact 5448242 Terminal Blocks applications.

  • Instrumentation
  • Telecommunications
  • Military Technology
  • Blowers
  • LED municipal outdoor and street lighting
  • All Electrical Machinery
  • Data Technology
  • Control panels
  • Embedded systems
  • Measuring & Control Technology
