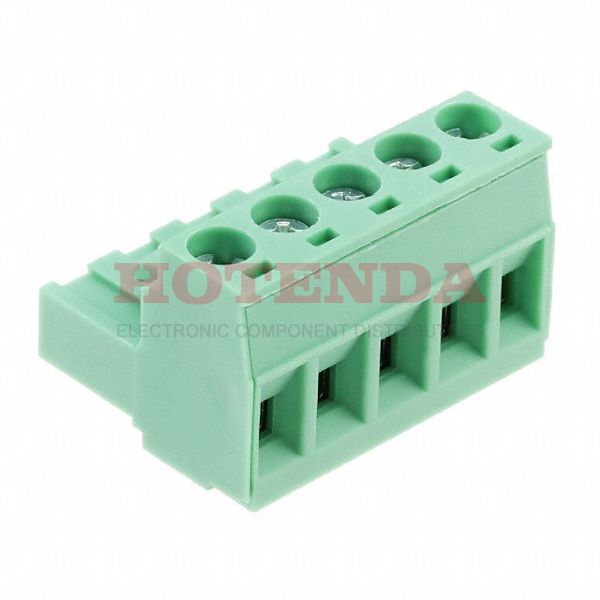

Name: 5448255
Brand: Phoenix Contact
SKU: 5448255
Price: 5.45000 USD
Availability: InStock

new-10%

5448255

Manufacturer part number:5448255

Manufacturer:Phoenix Contact

Description:5448255 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:5448255 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2015
Series	BCP
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Plug, Female Sockets
Number of Positions	5
Color	Green
Voltage - Rated	320V
Pitch	0.197 5.00mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	not_compliant
Current Rating	12A
Termination Style	Screw
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Screw Size	M3
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

5448255 Product Details

5448255 Overview

Free Hanging (In-Line) is the mounting type for the device.An Bulk case is utilized for packaging the product.The product belongs to the BCP Series.In many ways, it is more powerful due to its Retention Latches (Non-Wire Side) feature.The part is mounted by Free Hanging.Many Plug, Female Sockets products share the same benefits as this part.
