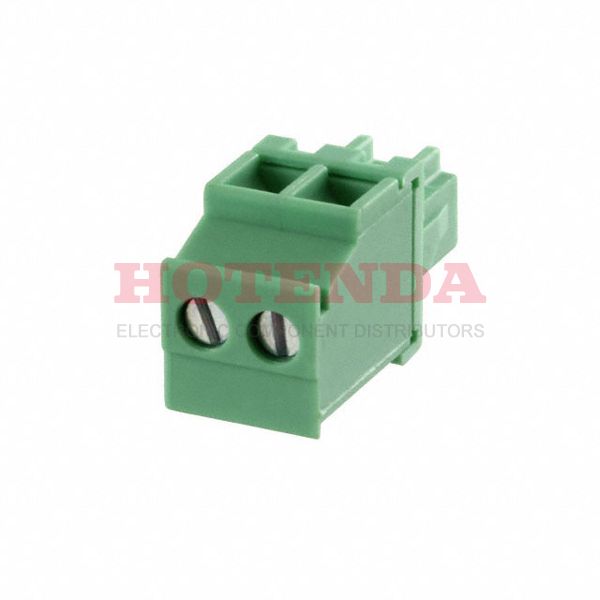

Name: 5449526
Brand: Phoenix Contact
SKU: 5449526
Availability: InStock

new-10%

5449526

Manufacturer part number:5449526

Manufacturer:Phoenix Contact

Description:5449526 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:5449526 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2015
Series	BCVP
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Plug, Female Sockets
Number of Positions	2
Color	Green
Voltage - Rated	160V
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Screw
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	7mm
Screw Size	M2
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

5449526 Product Details

5449526 Overview

Mounting type is Free Hanging (In-Line).A Bulk case is used for packaging.Product number BCVP belongs to the BCVP Series.Part Free Hanging is mounted to the part.There are a lot of similarities between this part and other Plug, Female Sockets products.
