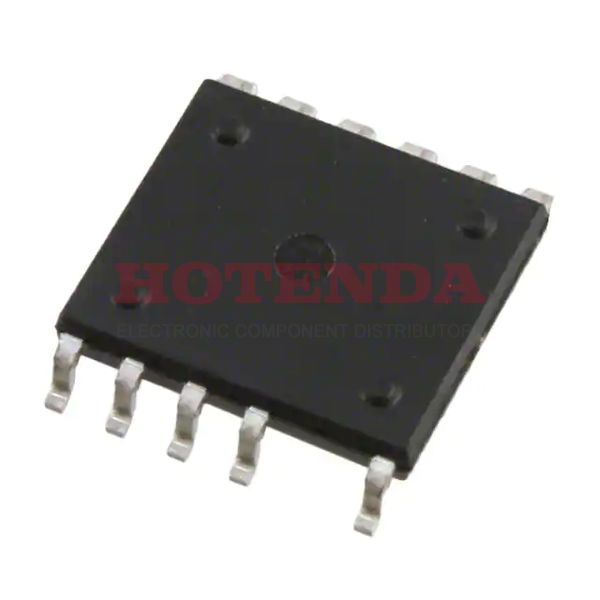

TNY286KG Overview
It is embedded in package 12-BESOP (0.350, 8.89mm Width), 11 Leads, Exposed Pad .The AC/DC power converter Tube is available for this product.There is a mounting point for this AC/DC converter in the way of Surface Mount .It is recommended that the ac dc converter be operated at a temperature of -40°C~150°C TJ °C in order to achieve its full performance.ANALOG CIRCUIT analog ICs are employed in this AC DC converter.The switching frequency reaches 124kHz~140kHz .There are a total of 11 terminations.There are 11 pins on this ac/dc converter.There are no problem mounting the ac dc converters by Surface Mount .This AC to DC converter belongs to the TinySwitch?-4 manufacturer family.There are 1 outputs to run.The output voltage of the AC/DC converter is 265V .In the following link, you will find the REACH SVHC standard: No SVHC .Input voltages under 265V can be used to power the AC to DC converter.A coverter produces 19W watts of output power.It is also possible to determine SEATED_HT CALCULATED using this ACDC converter.An input voltage of less than 85V volts is acceptable for use with this AC to DC inverter.A minimum supply voltage of 85V is sufficient for it to operate.
TNY286KG Features
Packaged with 12-BESOP (0.350, 8.89mm Width), 11 Leads, Exposed Pad
Switching Frequency at 124kHz~140kHz
With 11 pins
TNY286KG Applications
There are a lot of Power Integrations TNY286KG AC DC Converters applications.
- Vacuum Cleaner
- SMPS house keeping power supplies
- Cellular phone chargers
- Adapter/Charger for Cordless Phones
- Set Top Boxes (STB)
- Standby and Auxiliary Power Supplies
- ZigBee
- Shaver Charger
- Air Conditioning
- Rice Cooker
