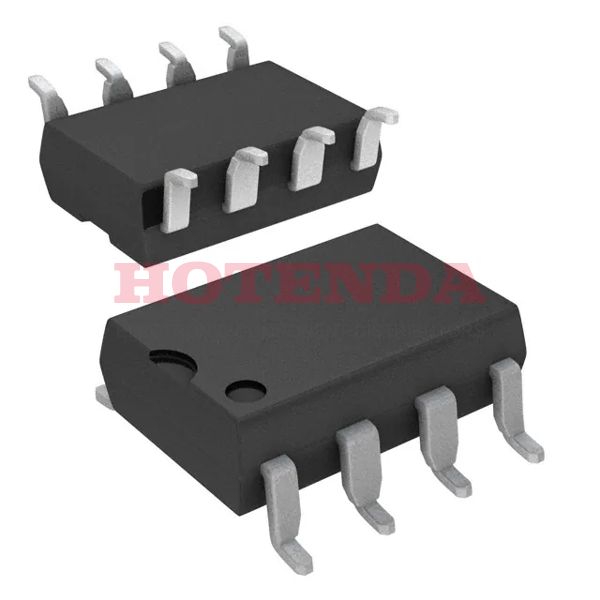

TOP223G-TL Overview
8-SMD, Gull Wing is the package in which the ac to dc converter is embedded.In Tape & Reel (TR) case, the ac dc converter is available.Surface Mount is mounted in the way of this AC/DC converter.The ac dc converter needs to be operated at -40°C~150°C TJ °C in order to perform.At this point, the switching frequency reaches 100kHz .In this ac/dc converter, there are 8 pins.This AC to DC converter belongs to the TOPSwitch?-II family of manufacturers.There is 5.7V output voltage from this AC/DC converter.The minimum supply voltage across the converter is 85V .There is a maximum voltage supply across the converter of 265V volts.The power AC DC comes with a 8-SMD case for packing.By setting the maximum value to 150°C , stability is ensured.It is necessary that the minimum working temperature of this isolated switch not fall below -40°C .
TOP223G-TL Features
Packaged with 8-SMD, Gull Wing
Switching Frequency at 100kHz
With 8 pins
TOP223G-TL Applications
There are a lot of Power Integrations TOP223G-TL AC DC Converters applications.
- Networking
- Standby and Auxiliary Power Supplies Set Top Boxes (STB)
- Power tools fast chargers with trickle and on/off
- Battery Chargers
- Laptops and personal digital assistants
- Wireless System
- Power Adaptors
- Off--line Battery Charger
- Set Top Boxes (STB)
- Battery Chargers
