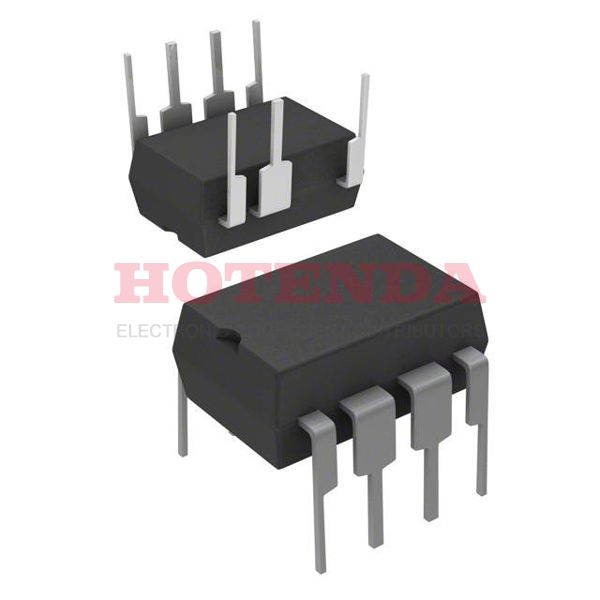

TOP244P Overview
This ac to dc converter is included in the package 8-DIP (0.300, 7.62mm), 7 Leads .In Bulk case, the ac dc converter is available.As you can see, this AC/DC converter is mounted in the way of Through Hole .For the ac dc converter to perform properly, it should be operated at a temperature of -40°C~150°C TJ °C.Analog ICs of type SWITCHING REGULATOR are used in this AC DC converter.When the switching frequency reaches 66kHz~132kHz , the circuit is closed.In total, it has 7 terminations.Approximately 7 pins are present on the ac/dc converter.The ac-dc converter has 8 pins.It belongs to the manufacturer family of TOPSwitch?-GX .AC to DC converter is included in Switching Regulator or Controllers .It has been set to 400A for the output current.Its output voltage is700V .It is also possible to discover REQUIRES AN AC SUPPLY OF 85 TO 265 V when using this ACDC converter.
TOP244P Features
Packaged with 8-DIP (0.300, 7.62mm), 7 Leads
Switching Frequency at 66kHz~132kHz
With 7 pins
Output Current at 400A
TOP244P Applications
There are a lot of Power Integrations TOP244P AC DC Converters applications.
- Laptops
- Battery chargers for smart phones
- Consumer electronics
- Battery chargers for cordless
- Adapter for ADSL
- Networking
- Power Adaptors
- WiFi Wireless
- Smartphones
- AC?DC USB chargers for Cameras
