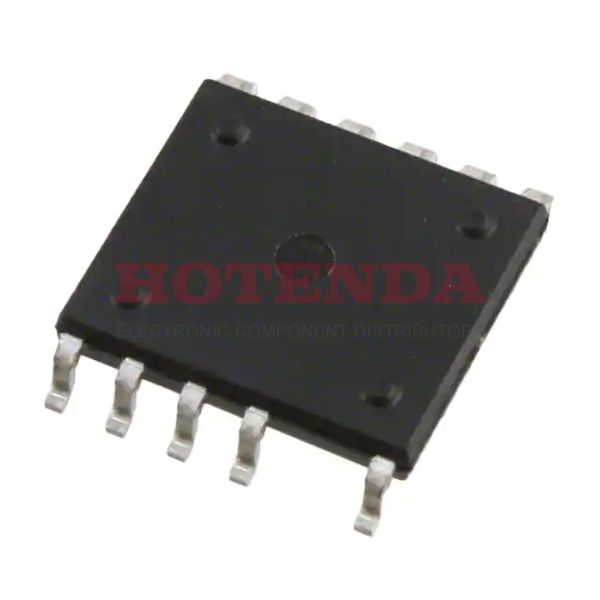

TOP268KG Overview
There is a ac to dc converter embedded in package 12-BESOP (0.350, 8.89mm Width), 11 Leads, Exposed Pad .In Tube case, the ac dc converter is available.This AC/DC converter is mounted in the way of Surface Mount .For the ac dc converter to perform at its best, it should be operated at a temperature of -40°C~150°C TJ °C.Analog IC type ANALOG CIRCUIT is utilized in this AC DC converter.Switching frequency reaches 66kHz 132kHz Hz.On this ac/dc converter, there are 12 pins.It is a member of TOPSwitch?-JX manufacturer family.There are 1 outputs to be processed.Current output is set to 6.88A .In the following link, you will find the REACH SVHC standard: No SVHC .There is a possibility of powering the AC to DC converter under a voltage of 265V .It is assumed that a coverter generates 50W as its output power.It is possible to use the AC to DC inverter with an input voltage less than 85V V.A voltage of 85V is the minimum supply voltage across the converter.There is a maximum voltage supply across the converter of 265V volts.It is recommended to keep the voltage (AC) that can be applied to the AC to DC power converter below 265V .It is capable of working with a minimum supply voltage of 85V volts.
TOP268KG Features
Packaged with 12-BESOP (0.350, 8.89mm Width), 11 Leads, Exposed Pad
Switching Frequency at 66kHz 132kHz
With 12 pins
Output Current at 6.88A
TOP268KG Applications
There are a lot of Power Integrations TOP268KG AC DC Converters applications.
- Power tools fast chargers with trickle and on/off
- Industrial controls
- Switching AC-DC Adapter
- Standby and Auxiliary Power Supplies
- Set-top boxes
- Remotely-controlled appliances
- Air conditioners
- AC-DC Output Power Conversion Applications
- Universal input AC/DC adapters (15W - 45W)
- Standby power
