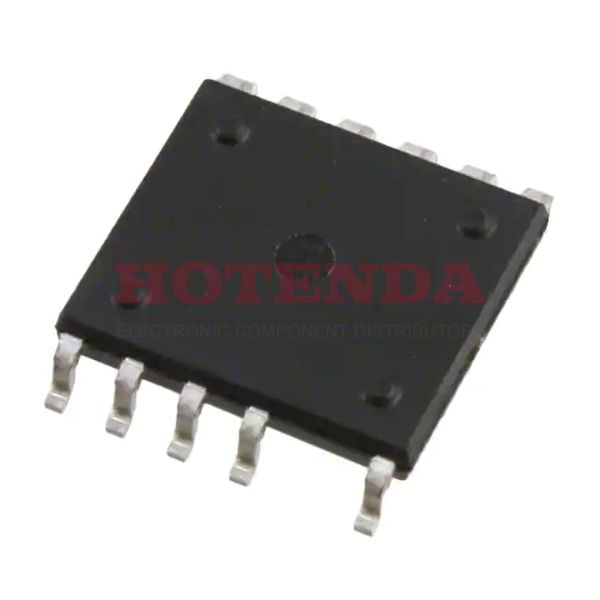

TOP269KG Overview
There is a ac to dc converter embedded in package 12-BESOP (0.350, 8.89mm Width), 11 Leads, Exposed Pad .The AC/DC power converter is available in Tube .Surface Mount mounts this AC/DC converter.This ac dc converter should be operated at a temperature of -40°C~150°C TJ °C so that it can deliver its performance.Analog ICs of type ANALOG CIRCUIT are used in this AC DC converter.There is 66kHz 132kHz switching frequency.The ac/dc converter has 12 pins.It belongs to a manufacturer family of TOPSwitch?-JX .Running 1 outputs is available.The output current is set to 7.73A .In the following link, you will find the REACH SVHC standard: No SVHC .An input voltage of 265V is available for powering the AC to DC converter.In the AC to DC transformer of a coverter, the output power is 55W .If the input voltage is less than 85V V, the AC to DC inverter can be used.A minimum voltage supply across the converter is 85V .The maximum supply voltage across the converter is 265V .An input voltage (AC) should be applied under 265V to the AC to DC power converter.
TOP269KG Features
Packaged with 12-BESOP (0.350, 8.89mm Width), 11 Leads, Exposed Pad
Switching Frequency at 66kHz 132kHz
With 12 pins
Output Current at 7.73A
TOP269KG Applications
There are a lot of Power Integrations TOP269KG AC DC Converters applications.
- Portable Apparatus
- Appliance Power Supplies
- Industrial controls
- Air conditioners
- LED Driver
- Networking
- Air Conditioning
- AC/DC Adaptors/Chargers for PDAs
- Standby and Auxiliary Power Supplies
- Standby Power for General Off-Line Applications
