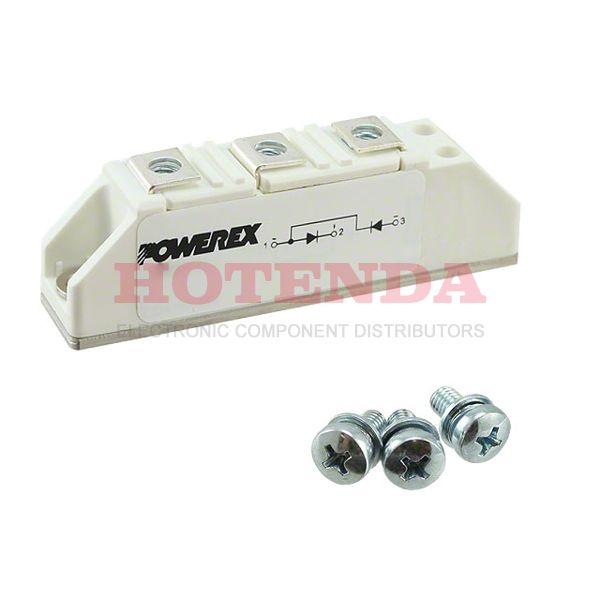

CD411499B

Name: CD411499B
Brand: Powerex Inc.
SKU: CD411499B
Availability: InStock

new-10%

Manufacturer part number:CD411499B

Manufacturer:Powerex Inc.

Description:CD411499B datasheet pdf and Diodes - Rectifiers - Arrays product details from Powerex Inc. stock available on our website

Case Package:SOT-23

Datasheet:CD411499B Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Chassis Mount
Mounting Type	Chassis Mount
Package / Case	POW-R-BLOK™ Module
Diode Element Material	SILICON
Packaging	Bulk
Published	2011
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Additional Feature	UL RECOGNIZED
HTS Code	8541.10.00.80
Subcategory	Rectifier Diodes
Terminal Position	UPPER
Terminal Form	UNSPECIFIED
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	unknown
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	3
JESD-30 Code	R-XUFM-X3
Qualification Status	Not Qualified
Operating Temperature (Max)	150°C
Operating Temperature (Min)	-40°C
Number of Elements	2
Speed	Standard Recovery >500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	10mA @ 1400V
Case Connection	ISOLATED
Application	GENERAL PURPOSE
Voltage - DC Reverse (Vr) (Max)	1400V
Max Reverse Voltage (DC)	1.4kV
Average Rectified Current	100A
Number of Phases	1
Non-rep Pk Forward Current-Max	2110A
Forward Voltage-Max	1.35V
Diode Configuration	1 Pair Series Connection
RoHS Status	RoHS Compliant
