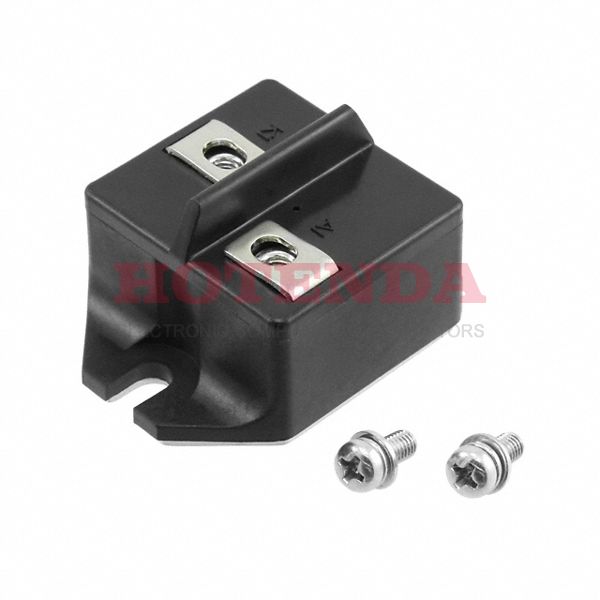

Name: CS240650
Brand: Powerex Inc.
SKU: CS240650
Availability: InStock

new-10%

CS240650

Manufacturer part number:CS240650

Manufacturer:Powerex Inc.

Description:CS240650 datasheet pdf and Diodes - Rectifiers - Single product details from Powerex Inc. stock available on our website

Case Package:SOT-23

Datasheet:CS240650 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Chassis Mount
Mounting Type	Chassis Mount
Package / Case	POW-R-BLOK™ Module
Diode Element Material	SILICON
Packaging	Bulk
Published	2000
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Additional Feature	UL RECOGNIZED, FREE WHEELING DIODE
HTS Code	8541.10.00.80
Subcategory	Rectifier Diodes
Terminal Position	UPPER
Terminal Form	UNSPECIFIED
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Current Rating	50A
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	2
JESD-30 Code	R-PUFM-X2
Qualification Status	Not Qualified
Operating Temperature (Max)	150°C
Operating Temperature (Min)	-40°C
Number of Elements	1
Element Configuration	Single
Speed	Standard Recovery >500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	10mA @ 600V
Voltage - Forward (Vf) (Max) @ If	1.5V @ 50A
Case Connection	ISOLATED
Forward Current	50A
Application	FAST RECOVERY POWER
Current - Average Rectified (Io)	50A DC
Forward Voltage	1.5V
Max Reverse Voltage (DC)	600V
Average Rectified Current	50A
Number of Phases	1
Reverse Recovery Time	800 ns
Max Repetitive Reverse Voltage (Vrrm)	600V
REACH SVHC	Unknown
RoHS Status	Non-RoHS Compliant

CS240650 Product Details

CS240650 Overview

A rectified current of 50A volts is averaged for this device.There is no limit to the forward current value.50A is its maximum current rating, which is the maximum current that a fuse can handle without deteriorating.
