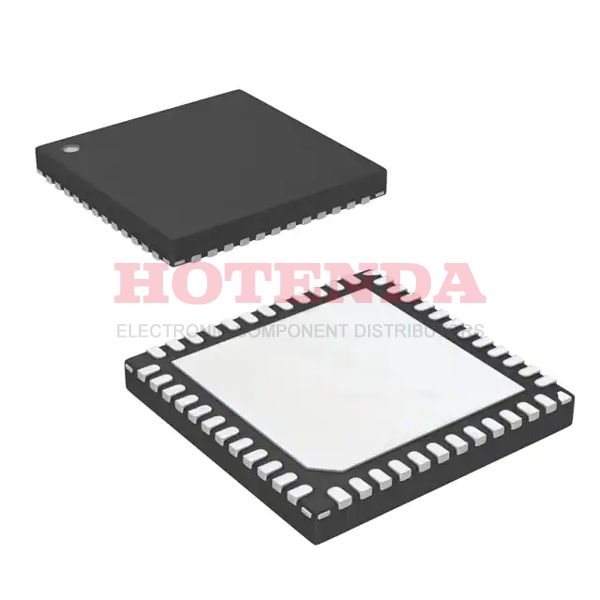

Controller, AMD SVI Up to 2V NOT SPECIFIED Cel QUAD Specialized Voltage Regulator 0°C~70°C ISL6324 48 Terminations 48-VFQFN Exposed Pad
SOT-23
ISL6324CRZ-T Datasheet
non-compliant
In-Stock: 0 items
Specifications
Name
Value
Type
Parameter
Mounting Type
Surface Mount
Package / Case
48-VFQFN Exposed Pad
Surface Mount
YES
Operating Temperature
0°C~70°C
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Number of Terminations
48
Applications
Controller, AMD SVI
Terminal Position
QUAD
Terminal Form
NO LEAD
Peak Reflow Temperature (Cel)
NOT SPECIFIED
Number of Functions
1
Terminal Pitch
0.5mm
[email protected] Reflow Temperature-Max (s)
NOT SPECIFIED
Base Part Number
ISL6324
JESD-30 Code
S-PQCC-N48
Number of Outputs
2
Input Voltage-Nom
5V
Analog IC - Other Type
DUAL SWITCHING CONTROLLER
Voltage - Input
5V~12V
Voltage - Output
Up to 2V
Control Mode
VOLTAGE-MODE
Control Technique
PULSE WIDTH MODULATION
Switcher Configuration
BUCK
Switching Frequency-Max
1000kHz
Height Seated (Max)
1mm
Length
7mm
Width
7mm
RoHS Status
ROHS3 Compliant
ISL6324CRZ-T Product Details
ISL6324CRZ-T Overview
There are 2 outputs supported by the voltage regulator. To facilitate transportation, alternator regulator is packaged in 48-VFQFN Exposed Pad. The power regulator is currently available in Tape & Reel (TR) packages. Volatge output for this voltage controller is Up to 2V. It has a mounting type of Surface Mount. In addition to Controller, AMD SVI, this electrical regulator targets other applications as well. It is recommended that the operating temperature be set to 0°C~70°C in order to prevent malfunctions. This variable voltage regulator is designed to have a voltage input of 5V~12V. The voltage regulator has 48terminals. As a DUAL SWITCHING CONTROLLER regulator, the electronic part has received high praise. Try search ISL6324 to get more pin-to-pin solutions for your special needs.
ISL6324CRZ-T Features
Widely used in Controller, AMD SVI applications DUAL SWITCHING CONTROLLER analog IC
ISL6324CRZ-T Applications
There are a lot of Renesas Electronics America Inc. ISL6324CRZ-T Specialized Voltage Regulators applications.
