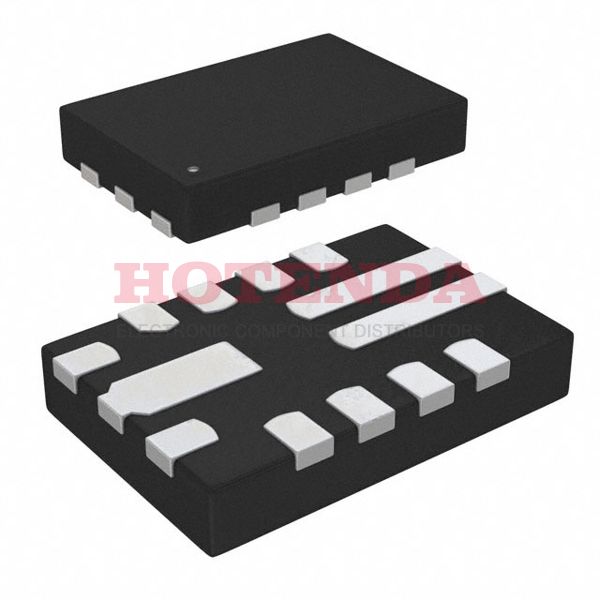

Name: RT6236BLGQUF
Brand: Richtek USA Inc.
SKU: RT6236BLGQUF
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	13-UFQFN Exposed Pad
Number of Pins	13
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2015
Series	ACOT™
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	13
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Function	Step-Down
Number of Outputs	1
Voltage - Input (Max)	18V
Output Type	Adjustable
Voltage - Input (Min)	4.5V
Input Voltage-Nom	12V
Analog IC - Other Type	SWITCHING REGULATOR
Output Configuration	Positive
Current - Output	6A
Max Output Voltage	8V
Voltage - Output (Min/Fixed)	0.7V
Topology	Buck
Control Mode	CURRENT-MODE
Frequency - Switching	650kHz
Control Technique	PULSE WIDTH MODULATION
Synchronous Rectifier	Yes
Min Output Voltage	700mV
Height Seated (Max)	0.6mm
Length	3mm
Width	2mm
RoHS Status	ROHS3 Compliant

RT6236BLGQUF Product Details

RT6236BLGQUF Overview

optimized performance is achieved by utilizing the Tape & Reel (TR) package in this voltage regulator. Throughout this voltage regulator, there are 13 terminations. There are two types of analog ICs in this voltage regulator 12v: SWITCHING REGULATOR ICs, which are the ones used in older voltage regulator 12vs. The space-saving 13-UFQFN Exposed Pad package is available for this voltage regulator. The voltage regulator 12v has 1 outputs. The adjusting voltage regulator generates Adjustable output. As the name implies, this voltage regulator 12v is designed for mounting on a Surface Mount bracket. During switching regulator operation, the operating temperature should remain at -40°C~85°C TA. This voltage regulator 12v reaches a switching frequency of 650kHz. The regulator is capable of operating with a dc to dc voltage regulator's minimum input voltage of 4.5V. As shown in the table below, adjusting voltage regulator's output voltage (Min/Fixed) is equal to 0.7V. A maximum design flexibility is provided by the 6A output current of voltage regulator. There is a maximum input voltage of 18V for this voltage regulator 12v. A regulator voltage's peak reflow temperature amounts to NOT SPECIFIED being indestructible. The voltage regulator 12v is designed to provide a nominal input voltage of 12V for operation. There are 13 pins used for switching regulator operation. For this switching regulator, we recommend keeping the output voltage at at least 700mV volts. With a maximum output voltage of 8V, DC DC switching regulator has a very high efficiency. In the ACOT™ family, this part palys an important role in DC DC switching regulator's traget applications.
