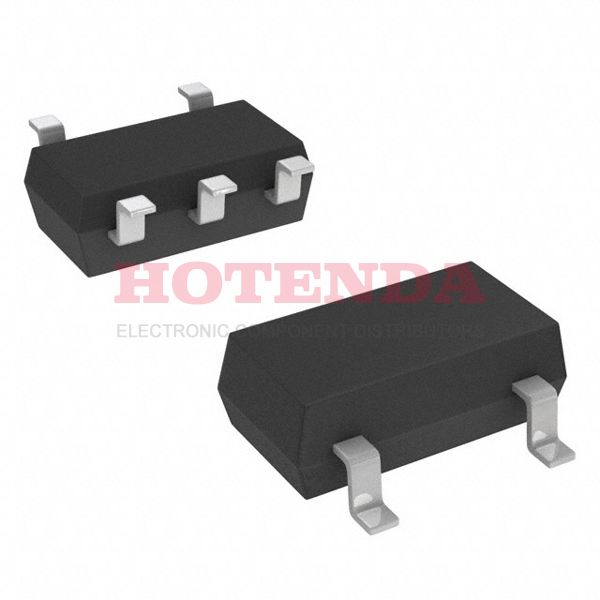

Name: RT8009-33GJ5
Brand: Richtek USA Inc.
SKU: RT8009-33GJ5
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	18 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOT-23-5 Thin, TSOT-23-5
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2011
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	5
ECCN Code	EAR99
Subcategory	Switching Regulator or Controllers
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Terminal Pitch	0.939mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
JESD-30 Code	R-PDSO-G5
Function	Step-Down
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	5.5V
Output Voltage	3.3V
Output Type	Fixed
Voltage - Input (Min)	2.5V
Input Voltage-Nom	3.6V
Analog IC - Other Type	SWITCHING REGULATOR
Output Configuration	Positive
Current - Output	600mA
Topology	Buck
Control Mode	VOLTAGE-MODE
Frequency - Switching	1.25MHz
Control Technique	PULSE WIDTH MODULATION
Synchronous Rectifier	Yes
Min Output Voltage	3.3V
Length	2.8955mm
RoHS Status	ROHS3 Compliant

RT8009-33GJ5 Product Details

RT8009-33GJ5 Overview

There is an optimized performance in this voltage regulator because it utilizes the Tape & Reel (TR) package. During the development of this harley voltage regulator, 5 terminations were made. There are two types of analog ICs in this voltage regulator 12v: SWITCHING REGULATOR ICs, which are the ones used in older voltage regulator 12vs. The space-saving SOT-23-5 Thin, TSOT-23-5 package is available for this voltage regulator. The voltage regulator is configured with 1 outputs. ICs such as this voltage regulator are capable of generating Fixed outputs through their output pins. A voltage regulator 12v such as this one fits the Surface Mount mounting bracket. Voltage regulators should be operated at -40°C~85°C TA temperature while operating. This voltage regulator 12v reaches a switching frequency of 1.25MHz. Voltage regulators like this one can operate at least with 2.5V as the dc to dc voltage regulator's minimum input voltage. DC DC switching regulator's maximum design flexibility comes from its output current of 600mA. 5.5V volts is DC DC switching regulator's maximum input voltage. Due to its NOT SPECIFIED high peak reflow temperature, this voltage regulator 12v is virtually indestructible. For operation, voltage regulator provides a nominal input voltage of 3.6V. There is a subcategory of this regulator voltage called Switching Regulator or Controllers. There is a possibility that DC DC switching regulator can give voltage at 3.3V volts. For this switching regulator, it is recommended that the output voltage is at least 3.3V volts.
