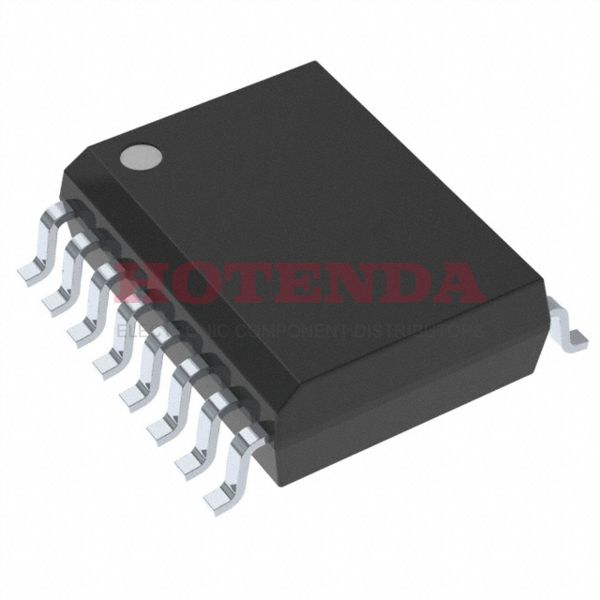

AD824AR-16 Overview
There is a 16-SOIC (0.295, 7.50mm Width) case in which the instrumentation amplifier is packaged. J-FET-type instrumentation amplifiers are used in this application. The op amp is delivered to you in a Tube case. The number of terminations approaches 16. A total of 16 pins are located on this board. This linear amplifier should be powered by an 15V battery. In order to be more specific, this instrumentation amplifier is one of the types of Operational Amplifier devices. This electronic part is recommended for mounting type Surface Mount. In terms of operating temperatures, this buffer amplifier works very well at a temperature of around -40°C~85°C . On this buffer amplifier, there are 4 circuits. As one of the many benefits of this buffer amplifier, it puts out Rail-to-Rail signals, which is one of the many benefits it offers. In order to ensure optimal performance, an 560μA supply is recommended for this electrical component.
AD824AR-16 Features
16 Pins
supply voltage of 15V
Output Type: Rail-to-Rail
AD824AR-16 Applications
There are a lot of Rochester Electronics, LLC AD824AR-16 Instrumentational OP Amps applications.
- Wireless base stations
- Automation control systems
- Scintillation detectors
- single/dual op amp sum and difference circuits
- Band-pass filter
- Video amplifiers
- Proportional operation circuits
- Micro signal measurement
- Ultrasound transducers
- Portable media players
