FS6X0720RJ Overview

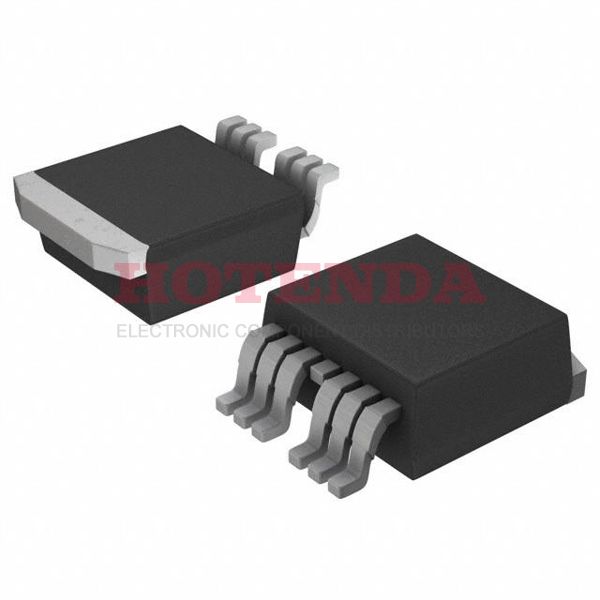

An embedded ac to dc converter is included in TO-263-7, D2Pak (6 Leads + Tab), TO-263CB package.The AC/DC power converter type is Tape & Reel (TR) .There is a mounting point for this AC/DC converter in the way of Surface Mount .For the ac dc converter to perform at its best, it should be operated at a temperature of -25°C~85°C TA °C.This AC DC converter employs SWITCHING REGULATOR analog IC type.As soon as the switching frequency reaches 300kHz , the circuit is closed.It can be used within the range of 9V~35V supply voltage (Vcc/Vdd).As a result, it has a total of 6 terminations.Up to 6 pins are present on the ac-dc converter.The AC to DC converter belongs to the manufacturer family of FPS? .Using a unique technique, a voltage with a maximum value of 23V can be ensured.Currently, the maximum current that the ac to dc inverter can take is 16.2A .
FS6X0720RJ Features
Packaged with TO-263-7, D2Pak (6 Leads + Tab), TO-263CB
Switching Frequency at 300kHz
FS6X0720RJ Applications
There are a lot of Rochester Electronics, LLC FS6X0720RJ AC DC Converters applications.
- Battery chargers for media tablets
- Charger
- Automotive Infotainment
- DVD players
- Adapter/Charger for Cell
- USB type-c v1.2 chargers with optional VDM
- Shaver Charger
- Smartphones
- Standby Power for General Off-Line Applications
- ATX/BTX Auxiliary Power
