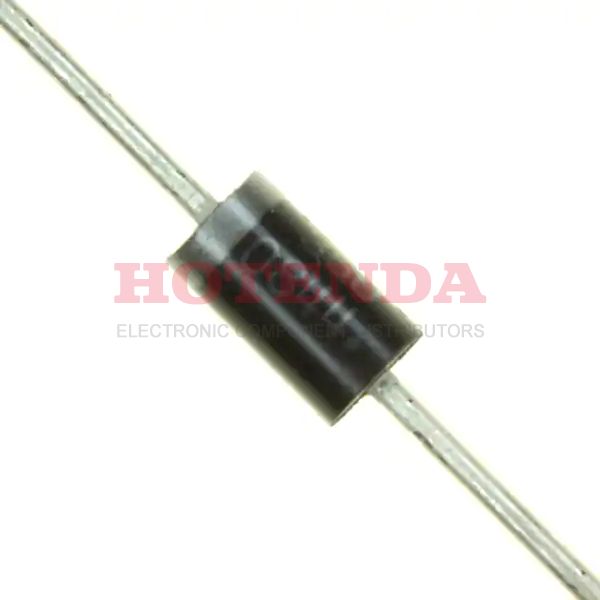

MR854

Name: MR854
Brand: Rochester Electronics, LLC
SKU: MR854
Availability: InStock

new-10%

Manufacturer part number:MR854

Manufacturer:Rochester Electronics, LLC

Description:MR854 datasheet pdf and Diodes - Rectifiers - Single product details from Rochester Electronics, LLC stock available on our website

Case Package:SOT-23

Datasheet:MR854 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	DO-201AA, DO-27, Axial
Surface Mount	NO
Diode Element Material	SILICON
Packaging	Bulk
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Terminal Finish	MATTE TIN
Additional Feature	FREE WHEELING DIODE
Terminal Form	WIRE
Peak Reflow Temperature (Cel)	260
[email protected] Reflow Temperature-Max (s)	40
Pin Count	2
JESD-30 Code	O-PALF-W2
Qualification Status	COMMERCIAL
Number of Elements	1
Configuration	SINGLE
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	10μA @ 400V
Voltage - Forward (Vf) (Max) @ If	1.25V @ 3A
Case Connection	ISOLATED
Operating Temperature - Junction	-65°C~125°C
Output Current-Max	3A
Application	EFFICIENCY
Voltage - DC Reverse (Vr) (Max)	400V
Current - Average Rectified (Io)	3A
Number of Phases	1
Reverse Recovery Time	300ns
Rep Pk Reverse Voltage-Max	400V
JEDEC-95 Code	DO-201AD
Non-rep Pk Forward Current-Max	100A
RoHS Status	ROHS3 Compliant
