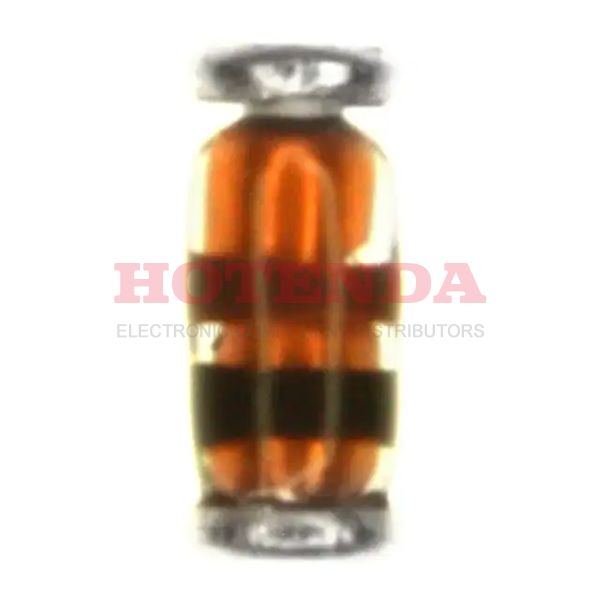

Name: RLZTE-114.3C
Brand: ROHM Semiconductor
SKU: RLZTE-114.3C
Availability: InStock

new-10%

RLZTE-114.3C

Manufacturer part number:RLZTE-114.3C

Manufacturer:ROHM Semiconductor

Description:ZENER DIODE 40Ohm ±3% 4.3V 5μA @ 1V 500mW 2 Terminations DO-213AC, MINI-MELF, SOD-80

Case Package:SOT-23

Datasheet:RLZTE-114.3C Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	DO-213AC, MINI-MELF, SOD-80
Diode Element Material	SILICON
Packaging	Tape & Reel (TR)
Tolerance	±3%
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Additional Feature	HIGH RELIABILITY
HTS Code	8541.10.00.50
Max Power Dissipation	500mW
Terminal Position	END
Terminal Form	WRAP AROUND
Reach Compliance Code	unknown
JESD-30 Code	O-LELF-R2
Qualification Status	Not Qualified
Operating Temperature (Max)	175°C
Number of Elements	1
Polarity	UNIDIRECTIONAL
Configuration	SINGLE
Impedance	40Ohm
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	5μA @ 1V
Case Connection	ISOLATED
Impedance-Max	40Ohm
Reference Voltage	4.3V
Voltage - Zener (Nom) (Vz)	4.3V
Zener Voltage	4.3V
Working Test Current	20mA
Reverse Current-Max	5μA
RoHS Status	ROHS3 Compliant

RLZTE-114.3C Product Details

RLZTE-114.3C Overview

It is necessary to supply this electrical device with a reverse leakage current of 5μA @ 1V.In operation, the maximum voltage - Zener (Nom) is set to 4.3V.This device can only be operated when the working test voltage is set to 20mA.
