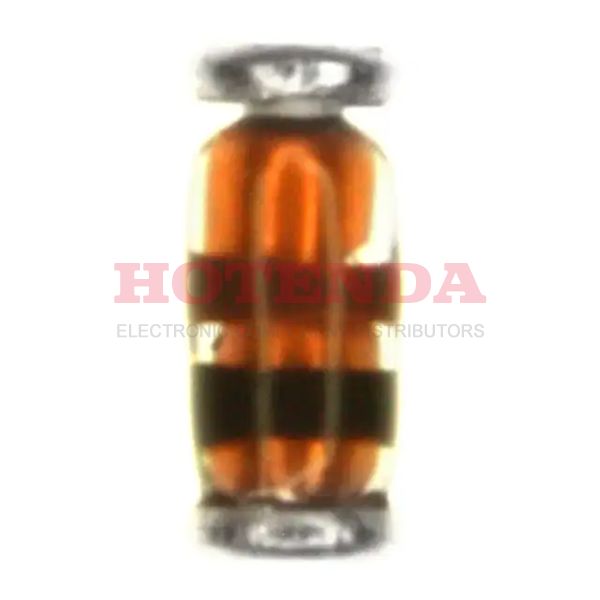

Name: RLZTE-116.8B
Brand: ROHM Semiconductor
SKU: RLZTE-116.8B
Availability: InStock

new-10%

RLZTE-116.8B

Manufacturer part number:RLZTE-116.8B

Manufacturer:ROHM Semiconductor

Description:ZENER DIODE 8Ohm ±3% 6.8V 2μA @ 3.5V 500mW 2 Terminations DO-213AC, MINI-MELF, SOD-80

Case Package:SOT-23

Datasheet:RLZTE-116.8B Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	DO-213AC, MINI-MELF, SOD-80
Number of Pins	2
Diode Element Material	SILICON
Packaging	Tape & Reel (TR)
Tolerance	±3%
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Terminal Finish	TIN/TIN COPPER
Max Operating Temperature	175°C
Min Operating Temperature	-65°C
Additional Feature	HIGH RELIABILITY
HTS Code	8541.10.00.50
Max Power Dissipation	500mW
Terminal Position	END
Terminal Form	WRAP AROUND
Peak Reflow Temperature (Cel)	260
Time@Peak Reflow Temperature-Max (s)	10
Number of Elements	1
Polarity	UNIDIRECTIONAL
Impedance	8Ohm
Element Configuration	Single
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	2μA @ 3.5V
Power Dissipation	500mW
Case Connection	ISOLATED
Max Reverse Leakage Current	2μA
Impedance-Max	8Ohm
Test Current	20mA
Reference Voltage	6.8V
Zener Voltage	6.8V
Voltage Tolerance	3%
Zener Current	20mA
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

RLZTE-116.8B Product Details

RLZTE-116.8B Overview

It is necessary to supply this electrical device with a reverse leakage current of 2μA @ 3.5V.Reverse leakage current reaches a maximum of 2μA.The design flexibility of this device is extremely high since its zener current is 20mA.
