Name: BCS-107-L-D-TE-009
Brand: Samtec Inc.
SKU: BCS-107-L-D-TE-009
Availability: InStock

new-10%

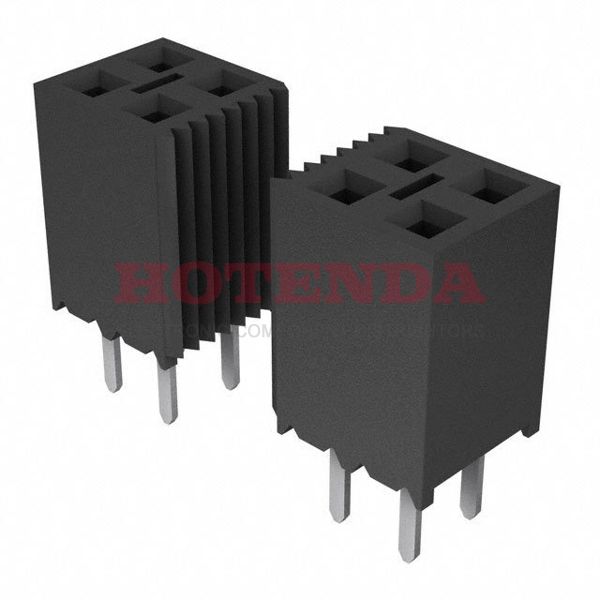

BCS-107-L-D-TE-009

Manufacturer part number:BCS-107-L-D-TE-009

Manufacturer:Samtec Inc.

Description:BCS-107-L-D-TE-009 datasheet pdf and Rectangular Connectors - Headers, Receptacles, Female Sockets product details from Samtec Inc. stock available on our website

Case Package:SOT-23

Datasheet:BCS-107-L-D-TE-009 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2015
Series	Tiger Claw™ BCS
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	14
Number of Rows	2
Voltage - Rated	475VAC
Additional Feature	9TH PIN POLARIZED
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.6A per Contact
Insulation Height	0.290 7.37mm
Style	Board to Board
Number of Positions Loaded	13
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Body Length or Diameter	0.7 inch
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.122 3.10mm
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
UL Flammability Code	94V-0
Contact Resistance	10mOhm
Insulation Resistance	5000000000Ohm
Mating Contact Pitch	0.1 inch
Polarization Key	POLAR PIN POSITION
Dielectric Withstanding Voltage	375VAC V
Durability	500 Cycles
Insertion Force-Max	1.39 N
Withdrawl Force-Min	.834 N
Plating Thickness	10μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

BCS-107-L-D-TE-009 Product Details

BCS-107-L-D-TE-009 Overview

Packaging is in the form of Receptacle.Mounting type Through Hole is selected for the device.Packaging is performed using a Tube case.It is part of the Tiger Claw? BCS Series of products.Additionally, there are features like 9TH PIN POLARIZED, just to name a few.Running in -55°C~125°C Operating Temperature.
