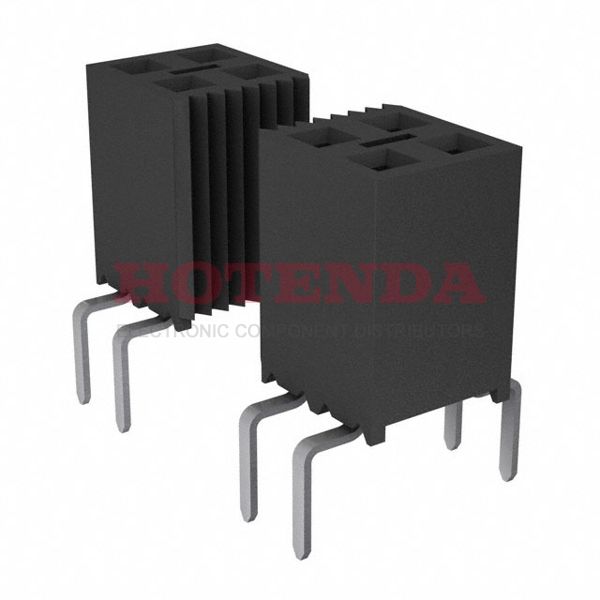

Name: BCS-122-F-D-PE
Brand: Samtec Inc.
SKU: BCS-122-F-D-PE
Availability: InStock

new-10%

BCS-122-F-D-PE

Manufacturer part number:BCS-122-F-D-PE

Manufacturer:Samtec Inc.

Description:2 RowsReceptacle, Pass ThroughSolderPhosphor BronzeThrough HoleTubeGoldLiquid Crystal Polymer (LCP), Glass Filled44 PositionsFemale Socket

Case Package:SOT-23

Datasheet:BCS-122-F-D-PE Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2016
Series	Tiger Claw™ BCS
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle, Pass Through
Number of Positions	44
Number of Rows	2
Gender	Female
Voltage - Rated	475VAC
Additional Feature	E.L.P., PASS THROUGH ENTRY
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.6A per Contact
Insulation Height	0.290 7.37mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.128 3.25mm
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	3.00μin 0.076μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

BCS-122-F-D-PE Product Details

BCS-122-F-D-PE Overview

Receptacle, Pass Through packaging is included.Its mounting type is Through Hole.We package the product with a Tube case.A product of the Tiger Claw™ BCS Series, it belongs to the range of products of that series.Additionally, there are features like E.L.P., PASS THROUGH ENTRY, just to name a few.You've got Through Hole mounted on the part.There is no operating temperature for the device.
