Name: SDL-101-G-10
Brand: Samtec Inc.
SKU: SDL-101-G-10
Availability: InStock

new-10%

SDL-101-G-10

Manufacturer part number:SDL-101-G-10

Manufacturer:Samtec Inc.

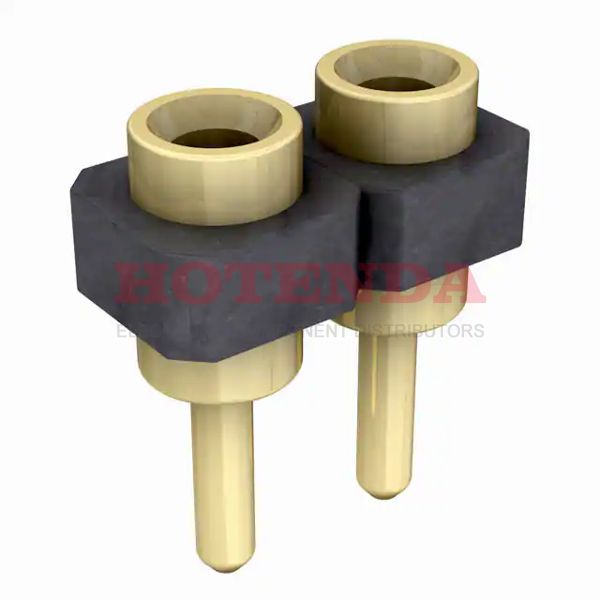

Description:2 Rows Receptacle Solder Beryllium Copper Through Hole Bulk Gold Liquid Crystal Polymer (LCP) 2 Positions Female Socket

Case Package:SOT-23

Datasheet:SDL-101-G-10 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	2 Weeks
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Plastic
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	SDL
Published	2008
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Discontinued
Termination	Solder
Connector Type	Receptacle
Number of Positions	2
Number of Rows	2
Additional Feature	LOW PROFILE
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	2.54mm
Insulation Height	0.122 3.10mm
Style	Board to Board
Number of Positions Loaded	All
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.108 2.75mm
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Housing Color	Black
Height	1.27mm
Length	5.08mm
Width	5.08mm
Contact Finish Thickness - Mating	10.0μin 0.25μm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

SDL-101-G-10 Product Details

SDL-101-G-10 Overview

It comes in Receptacle packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the SDL Series of products.In addition, there are other features such as LOW PROFILE, to mention only a few.The part is mounted by Through Hole.The device runs in -55°C~125°C Operating Temperature.
