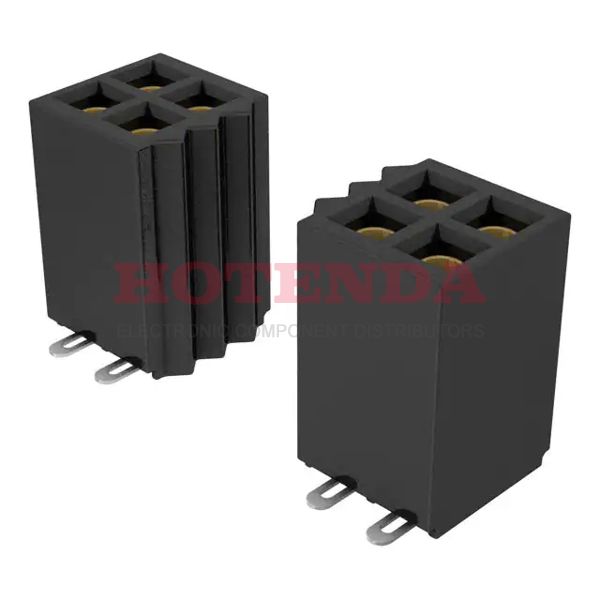

Name: SFMC-139-L2-L-D
Brand: Samtec Inc.
SKU: SFMC-139-L2-L-D
Availability: InStock

new-10%

SFMC-139-L2-L-D

Manufacturer part number:SFMC-139-L2-L-D

Manufacturer:Samtec Inc.

Description:2 Rows Receptacle Solder Beryllium Copper Surface Mount Tube Gold Liquid Crystal Polymer (LCP) 78 Positions Female Socket

Case Package:SOT-23

Datasheet:SFMC-139-L2-L-D Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Option 1	LOCKING
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	Tiger Eye™ SFMC
JESD-609 Code	e3
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	78
Number of Rows	2
Gender	Female
Additional Feature	TIGER EYE CONTACT
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	2.9A per Contact
Total Number of Contacts	78
Insulation Height	0.185 4.70mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Body Length or Diameter	1.965 inch
Row Spacing - Mating	0.050 (1.27mm)
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Depth	0.18 inch
Contact Resistance	15mOhm
Mating Contact Pitch	0.05 inch
Polarization Key	POLARIZED HOUSING
Durability	10000 Cycles
Insertion Force-Max	LIF N
Withdrawl Force-Min	.556 N
Plating Thickness	10μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

SFMC-139-L2-L-D Product Details

SFMC-139-L2-L-D Overview

Packaging is in the form of Receptacle.This device has a Surface Mount mounting type.An orange Tube case is used to package the product.Specifically, it is one of the products in the Tiger Eye™ SFMC Series.Other features include TIGER EYE CONTACT, to name just a few.Devices operate at -55°C~125°C operating temperatures.
