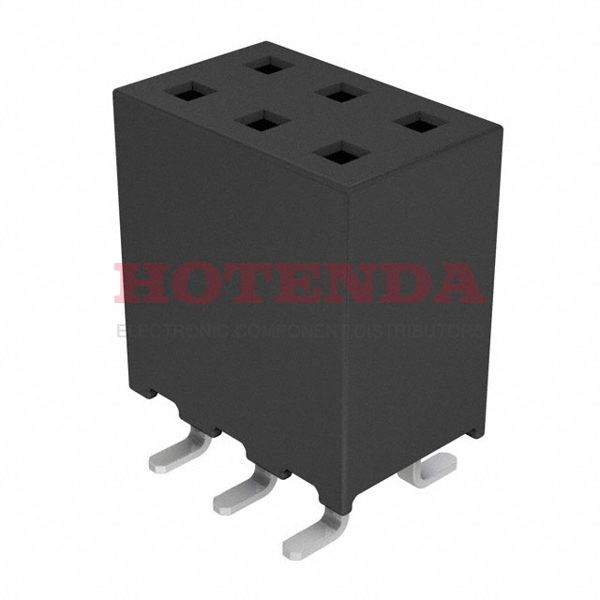

Name: SQW-103-01-H-D-VS
Brand: Samtec Inc.
SKU: SQW-103-01-H-D-VS
Availability: InStock

new-10%

SQW-103-01-H-D-VS

Manufacturer part number:SQW-103-01-H-D-VS

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeSurface MountBulkGoldLiquid Crystal Polymer (LCP)6 PositionsForked

Case Package:SOT-23

Datasheet:SQW-103-01-H-D-VS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2015
Series	SQW
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	6
Number of Rows	2
Gender	Female
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Forked
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.8A per Contact
Total Number of Contacts	6
Insulation Height	0.300 7.62mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Row Spacing - Mating	0.079 (2.00mm)
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	3.00μin 0.076μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

SQW-103-01-H-D-VS Product Details

SQW-103-01-H-D-VS Overview

This product is packaged in a Receptacle box.Surface Mount is the mounting type for the device.Bulk cases are used to package the product.There is a product in the SQW Series.-55°C~125°C Operating Temperature is what the device runs at.
