Name: SS-122-T-2-N
Brand: Samtec Inc.
SKU: SS-122-T-2-N
Availability: InStock

new-10%

SS-122-T-2-N

Manufacturer part number:SS-122-T-2-N

Manufacturer:Samtec Inc.

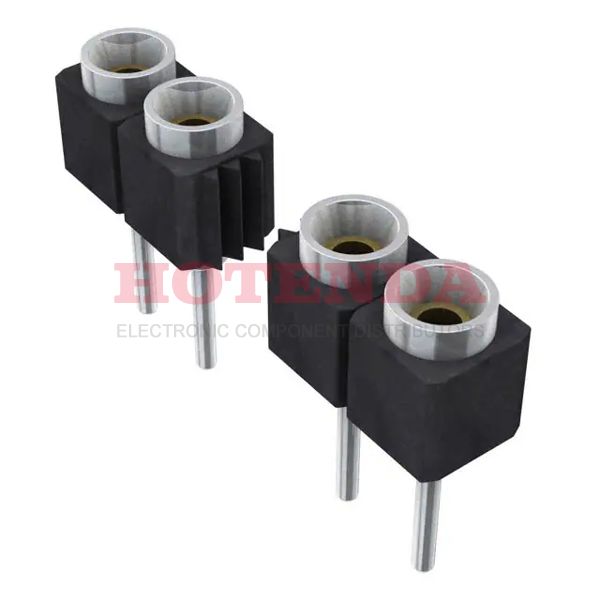

Description:1 Rows Receptacle Solder Beryllium Copper Through Hole Tube Gold Polybutylene Terephthalate (PBT), Glass Filled 22 Positions Female Socket

Case Package:SOT-23

Datasheet:SS-122-T-2-N Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Housing Material	Plastic
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2008
Series	SS
JESD-609 Code	e3
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	22
Number of Rows	1
Gender	Female
Additional Feature	WITH NON-FLUSH
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Female Socket
Insulation Height	0.300 7.62mm
Style	Board to Board
Number of Positions Loaded	All
Reach Compliance Code	not_compliant
Current Rating	1A
Pitch - Mating	0.100 2.54mm
Contact Length - Post	0.125 3.18mm
Number of Contacts	22
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Housing Color	Black
Device Socket Type	IC SOCKET
Height	3.3mm
Length	55.9mm
Width	2.54mm
Contact Finish Thickness - Mating	30.0μin 0.76μm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

SS-122-T-2-N Product Details

SS-122-T-2-N Overview

The product is packaged in Receptacle.This device is mounted in the Through Hole position.It has been determined that a Tube case is necessary to package the product.There is a product in the SS Series.To name a few, there is also WITH NON-FLUSH.Part Through Hole is mounted to the part.As a result, the device runs at -55°C~125°C Operating Temperature.
