Name: SSM-102-S-DV
Brand: Samtec Inc.
SKU: SSM-102-S-DV
Availability: InStock

new-10%

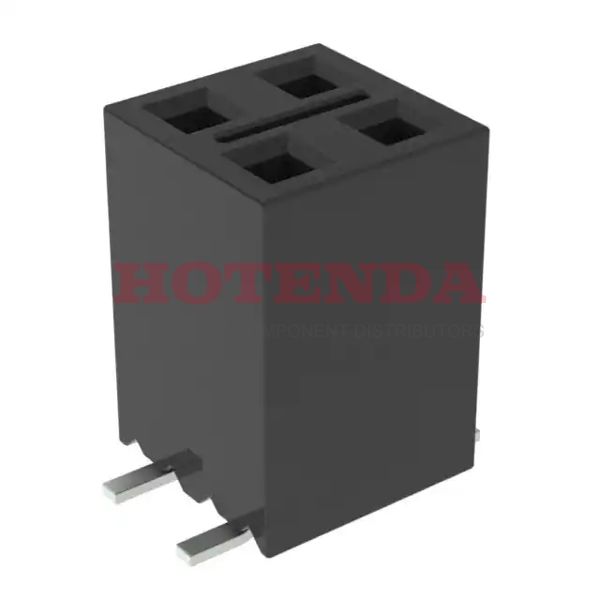

SSM-102-S-DV

Manufacturer part number:SSM-102-S-DV

Manufacturer:Samtec Inc.

Description:SSM-102-S-DV datasheet pdf and Rectangular Connectors - Headers, Receptacles, Female Sockets product details from Samtec Inc. stock available on our website

Case Package:SOT-23

Datasheet:SSM-102-S-DV Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	2 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2014
Series	SSM
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Discontinued
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle, Pass Through
Number of Positions	4
Number of Rows	2
Gender	Female
Voltage - Rated	405VAC 572VDC
Additional Feature	E.L.P., TIGER CLAW
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	5.2A per Contact
Total Number of Contacts	4
Orientation	Vertical
Depth	5.08mm
Insulation Height	0.290 7.37mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Number of Conductors	ONE
Reference Standard	UL
Row Spacing - Mating	0.100 (2.54mm)
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Housing Color	Black
Contact Resistance	10mOhm
Insulation Resistance	5000000000Ohm
Mating Contact Pitch	0.1 inch
Max Voltage Rating (AC)	475V
Max Current Rating	6.9A
Dielectric Withstanding Voltage	1000VAC V
PCB Contact Row Spacing	5.5118 mm
Insertion Force-Max	1.39 N
Withdrawl Force-Min	.556 N
Length	5.08mm
Width	5.08mm
Plating Thickness	30μin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

SSM-102-S-DV Product Details

SSM-102-S-DV Overview

You'll get Receptacle, Pass Through packages.Mounting type Surface Mount is assigned to the device.To package the product, a Tube case is used.It is part of the SSM Series of products.There are also other features like E.L.P., TIGER CLAW, to name a few.Device runs in -55°C~125°C operating temperature.
