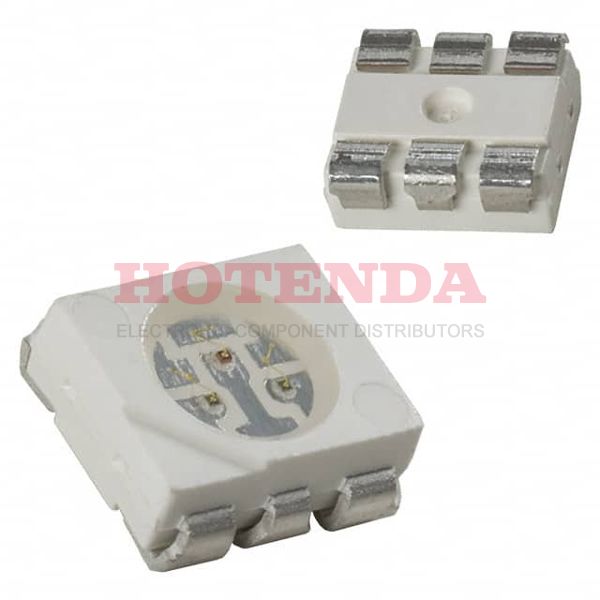

Name: GM5WA06250A
Brand: Sharp Microelectronics
SKU: GM5WA06250A
Availability: InStock

new-10%

GM5WA06250A

Manufacturer part number:GM5WA06250A

Manufacturer:Sharp Microelectronics

Description:GM5WA06250A datasheet pdf and LED Indication - Discrete product details from Sharp Microelectronics stock available on our website

Case Package:SOT-23

Datasheet:GM5WA06250A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	6-SMD, J-Lead
Packaging	Tape & Reel (TR)
Published	2002
Size / Dimension	6.00mm Lx5.00mm W
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	6
Color	Red, Green, Blue (RGB)
Packing Method	TAPE AND REEL
Number of Functions	1
Reach Compliance Code	unknown
Operating Temperature (Max)	85°C
Operating Temperature (Min)	-30°C
Configuration	Independent
Voltage - Forward (Vf) (Typ)	2.3V Red 4.2V Green 4.2V Blue
Viewing Angle	120 °
Optoelectronic Device Type	TRIPLE COLOR LED
Current - Test	40mA Red 40mA Green 40mA Blue
Lens Style	Round with Flat Top
Lens Size	4.00mm Dia
Luminous Intensity	1.45 cd
Millicandela Rating	1450mcd Red, 1450mcd Green, 1450mcd Blue
Lens Transparency	Clear
Lens Color	Colorless
Forward Current-Max	0.05A
Wavelength	469 nm
Wavelength - Dominant	628nm Red 520nm Green 469nm Blue
T-code	T1-1/2
Diameter	4mm
Height	2.4mm
RoHS Status	RoHS Compliant
Lead Free	Lead Free

About GM5WA06250A

The GM5WA06250A from Sharp Microelectronics is a high-performance microcontroller designed for a wide range of embedded applications. This component features GM5WA06250A datasheet pdf and LED Indication - Discrete product details from Sharp Microelectronics stock available on our website.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the GM5WA06250A, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
