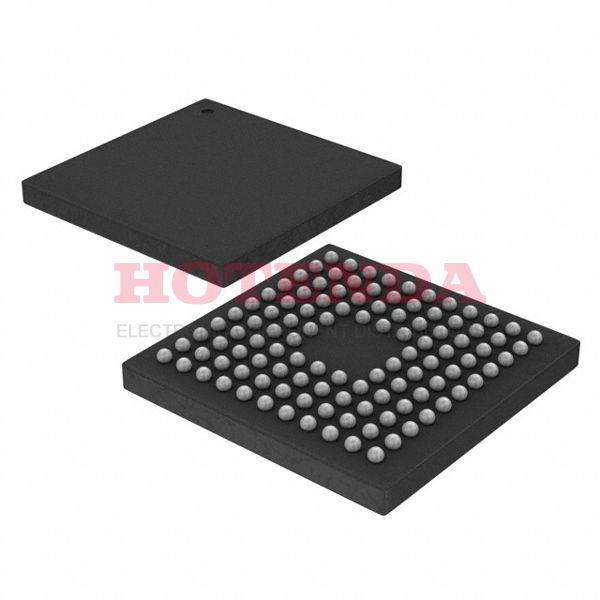

Name: EFM32LG290F128G-E-BGA112
Brand: Silicon Labs
SKU: EFM32LG290F128G-E-BGA112
Availability: InStock

new-10%

EFM32LG290F128G-E-BGA112

Manufacturer part number:EFM32LG290F128G-E-BGA112

Manufacturer:Silicon Labs

Description:Microcontroller 112 Pin 48MHz 3V BGA

Case Package:SOT-23

Datasheet:EFM32LG290F128G-E-BGA112 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Package / Case	BGA
Surface Mount	YES
Number of Pins	112
Published	2014
Part Status	Active
Number of Terminations	112
ECCN Code	3A001.A.3
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Terminal Position	BOTTOM
Terminal Form	BALL
Supply Voltage	3V
Terminal Pitch	0.8mm
Frequency	48MHz
Operating Supply Voltage	3.8V
Temperature Grade	INDUSTRIAL
Interface	EBI/EMI, I2C, I2S, IrDA, SPI, UART, USART, USB
Memory Size	128kB
Oscillator Type	Internal
Number of I/O	90
RAM Size	32kB
Memory Type	FLASH
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Bit Size	32
Frequency (Max)	48MHz
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	32b
PWM Channels	YES
DAC Channels	YES
Number of Timers/Counters	5
Address Bus Width	28
Core Architecture	ARM
Number of Programmable I/O	90
Length	10mm
Height Seated (Max)	1.3mm
RoHS Status	RoHS Compliant

EFM32LG290F128G-E-BGA112 Product Details

EFM32LG290F128G-E-BGA112 Overview

The package has a BGA shape. With 90 I/Os, it's pretty good. The IC chip fits into the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. There are 112 terminations on the IC chip. 32-bits are the size of the data that comes with MCU. A 3V volt supply is provided by the Microcontroller chip. In addition to that, MCU chip has YES DMA channels. Its memory size is 128kB. An effective performance can be achieved at a frequency of 48MHz. There are a total of YES channels in the device. It is possible to access the 112 pins on the chip. In total, it has 5 timers and counters in it. The equipment on this page features FLASH memory technology. This device features a ARM core architecture. As far as the programmability is concerned, it has 90 Programmable I/Os.
