TS1102-200EG5T Overview

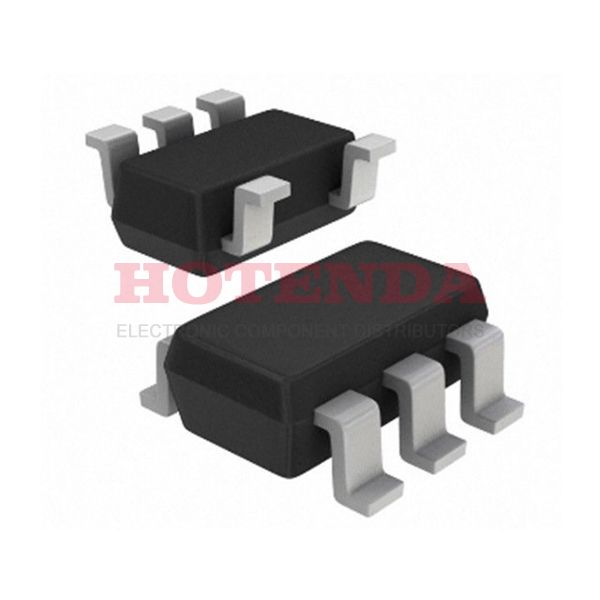

There is a SC-74A, SOT-753 case in which the instrumentation amplifier is packaged. Op amps are Current Sense types of amplifier on the chip. A Tape & Reel (TR) case is used to deliver the buffer op amp. The number of terminations approaches 5. As a reminder, this buffer op amp should be powered by 1.8V battery and that the battery should be inserted in the amplifier. The buffer op amp includes 5 pins. With regards to the offset voltage of the input, buffer amplifier is rated at 30μV. This electrical part should be mounted using type Surface Mount. With regard to operating temperature, op amp ranges -40°C~105°C. This op amp can operate from a supply current at 680nA. On this buffer amplifier, there are 1 circuits. In this linear amplifier, there is also an analog IC called a ANALOG CIRCUIT.
TS1102-200EG5T Features
supply voltage of 1.8V
TS1102-200EG5T Applications
There are a lot of Silicon Labs TS1102-200EG5T Instrumentational OP Amps applications.
- Portable media players
- Biopotential
- Power control
- Digital cameras
- Video amplifiers
- Laptop
- Signal transformation
- Logarithmic operation circuits
- High/low-pass filter circuit
- Automatic control
