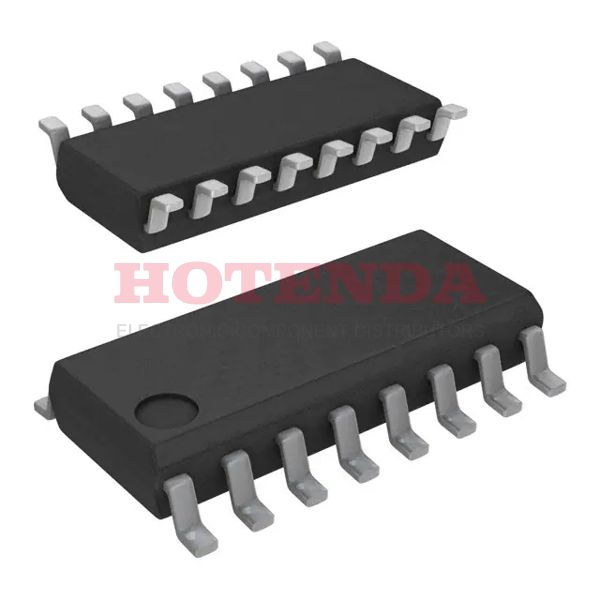

TS9004ISN16 Overview
A convenient packaging is provided in the form of 16-SOIC (0.154, 3.90mm Width) .The comparator has a type CMOS, Complementary, TTL output.As a result, it is designed with Tube package.16 terminals are found on the comparator.Electronic comparator is a component of the Comparator family.With a voltage of 3V supplied, the comparator is capable of performing a wide range of demanding tasks.A comparator of this type is typically of type with Voltage Reference .The total number of elements is 4 .Electronic comparator is recommended to mount the device using type Surface Mount .As a precaution, it is recommended to set the operating temperature to -40°C~85°C to prevent malfunctions.Electronic comparator has 16 pins.You can search TS9004 if you are looking for more pin-to-pin solutions.In this comparator, the quiescent current is 5.1μA .The board has a Surface Mount for mounting on a PCB or any other board.In this case, the part is from the NanoWatt Analog™ comparator series.
TS9004ISN16 Features
CMOS, Complementary, TTL output capability
with Voltage Reference IC
Employing 4 elements
Operates under -40°C~85°C
Quiescent Current: 5.1μA
TS9004ISN16 Applications
There are a lot of Silicon Labs
TS9004ISN16 linear comparators applications.
- General-Purpose Portable Devices
- General-Purpose, Low-Voltage Applications
- Self-diagnostics
- Lithium ion battery monitoring
- Battery management and protection
- Current and voltage sensing
- Analog front end
- Power management
- Point of load regulators
- DC/DC and AC/DC power supplies
