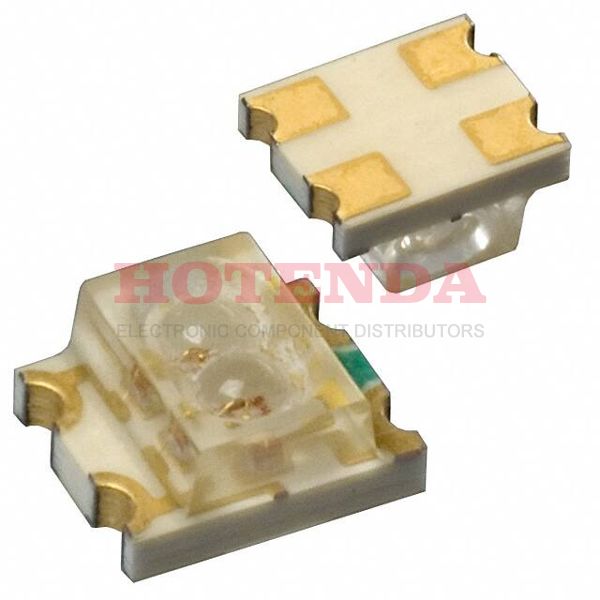

Name: AAPY1204W-TR
Brand: Stanley Electric Co
SKU: AAPY1204W-TR
Availability: InStock

new-10%

AAPY1204W-TR

Manufacturer part number:AAPY1204W-TR

Manufacturer:Stanley Electric Co

Description:2.5x2mm Green/Yellow(6/12mcd)-Orange(5/9mcd) 80/80° Water Clear Surface Mount LED

Case Package:SOT-23

Datasheet:AAPY1204W-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Supplier Device Package	1210
Packaging	Tape & Reel (TR)
Published	2001
Series	1204W
Size / Dimension	3.00mm Lx2.50mm W
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	4 (72 Hours)
Color	Green, Orange
Configuration	Independent
Voltage - Forward (Vf) (Typ)	2.1V Green 2.2V Orange
Viewing Angle	80°
Current - Test	20mA Green 20mA Orange
Lens Style	Rectangle with Flat Top
Lens Size	1.80mmx2.50mm
Forward Voltage	2.1V
Luminous Intensity	9 mcd
Millicandela Rating	12mcd Green, 9mcd Orange
Lens Transparency	Clear
Wavelength - Peak	570nm Green 605nm Orange
Lens Color	Colorless
Wavelength	570 nm
Wavelength - Dominant	572nm Green 606nm Orange
Height	1.5mm
Length	3mm
Width	2.5mm
Height (Max)	1.50mm
RoHS Status	RoHS Compliant
Lead Free	Lead Free

About AAPY1204W-TR

The AAPY1204W-TR from Stanley Electric Co is a high-performance microcontroller designed for a wide range of embedded applications. This component features 2.5x2mm Green/Yellow(6/12mcd)-Orange(5/9mcd) 80/80° Water Clear Surface Mount LED.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the AAPY1204W-TR, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
