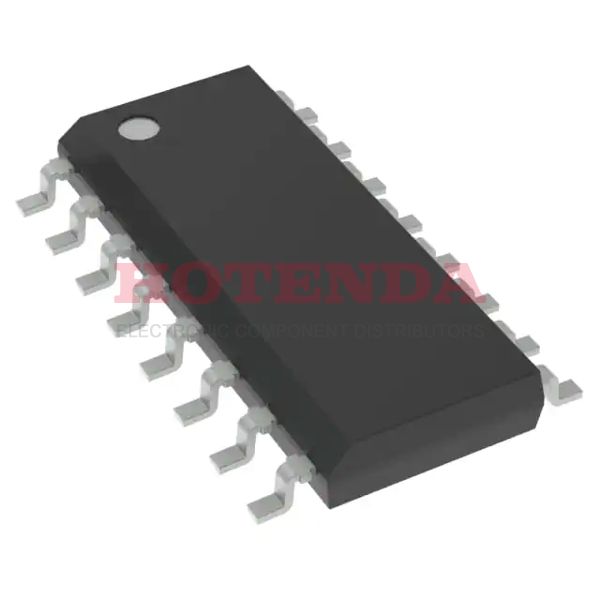

Name: TSH95IDT
Brand: STMicroelectronics
SKU: TSH95IDT
Availability: InStock

new-10%

TSH95IDT

Manufacturer part number:TSH95IDT

Manufacturer:STMicroelectronics

Description:40mA per Channel 5μA 80 dB Instrumentational OP Amps 20μA 7V~12V ±3.5V~6V TSH95 16 Pins 16-SOIC (0.154, 3.90mm Width)

Case Package:SOT-23

Datasheet:TSH95IDT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154, 3.90mm Width)
Number of Pins	16
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Subcategory	Operational Amplifier
Packing Method	TAPE AND REEL
Technology	BIPOLAR
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	4
Supply Voltage	5V
Terminal Pitch	1.27mm
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	TSH95
Pin Count	16
Number of Elements	4
Operating Supply Current	4.5mA
Nominal Supply Current	24mA
Output Current	40mA
Slew Rate	110V/μs
Amplifier Type	Voltage Feedback
Common Mode Rejection Ratio	80 dB
Current - Input Bias	5μA
Voltage - Supply, Single/Dual (±)	7V~12V ±3.5V~6V
Output Current per Channel	40mA
Input Offset Voltage (Vos)	4mV
Gain Bandwidth Product	150MHz
Neg Supply Voltage-Nom (Vsup)	-5V
Unity Gain BW-Nom	150000 kHz
Voltage Gain	70dB
Average Bias Current-Max (IIB)	20μA
Low-Offset	NO
Frequency Compensation	YES
Supply Voltage Limit-Max	7V
Bias Current-Max (IIB) @25C	15μA
Dual Supply Voltage	5V
Neg Supply Voltage-Max (Vsup)	-7V
Wideband	YES
Height Seated (Max)	1.75mm
Length	9.9mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TSH95IDT Product Details

TSH95IDT Overview

Op amp is packaged in 16-SOIC (0.154, 3.90mm Width) case. Op amps are Voltage Feedback types of amplifier on the chip. Instrumentation amplifier is delivered in a Tape & Reel (TR) case. The number of terminations approaches 16. Linear amplifier has a total of 16 pins. Please take in mind that op amp should be run at 5V. Instrumentation amplifier is a part of Operational Amplifier. Linear amplifier includes 16 pins. Regarding input offset voltage, buffer amplifier rates 4mV voltage. Surface Mount is the recommended mounting type of operational amplifiers. With regard to operating temperature, op amp ranges -40°C~125°C. Operational amplifier can operate supply current at 4.5mA. The voltage gain should stay at 70dB. Op amp has total of 4 elements. It is used TAPE AND REEL to pack the op amps.
