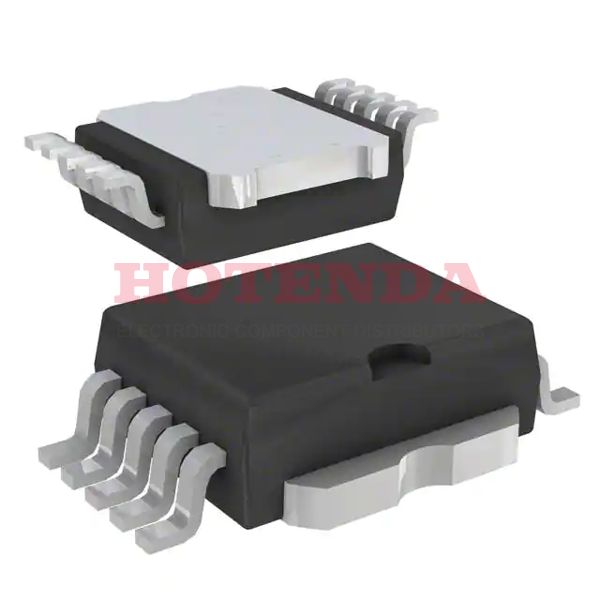

Name: VNQ690SP-E
Brand: STMicroelectronics
SKU: VNQ690SP-E
Availability: InStock

new-10%

VNQ690SP-E

Manufacturer part number:VNQ690SP-E

Manufacturer:STMicroelectronics

Description:13V N-Channel 1.27mm PMIC VNQ660 10 Pin 13V 10-PowerSOIC (0.370, 9.40mm Width)

Case Package:SOT-23

Datasheet:VNQ690SP-E Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	18 Weeks
Lifecycle Status	ACTIVE (Last Updated: 7 months ago)
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	10-PowerSOIC (0.370, 9.40mm Width)
Number of Pins	10
Operating Temperature	-40°C~150°C TJ
Packaging	Tube
JESD-609 Code	e3
Feature	Status Flag
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	10
ECCN Code	EAR99
Resistance	90mOhm
Terminal Finish	Matte Tin (Sn) - annealed
Subcategory	Peripheral Drivers
Max Power Dissipation	78W
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	250
Number of Functions	4
Supply Voltage	13V
Terminal Pitch	1.27mm
[email protected] Reflow Temperature-Max (s)	30
Base Part Number	VNQ660
Pin Count	10
Number of Outputs	4
Output Type	N-Channel
Max Output Current	10A
Operating Supply Voltage	36V
Power Supplies	13V
Interface	On/Off
Nominal Supply Current	6mA
Output Configuration	High Side
Power Dissipation	78W
Output Current	10A
Voltage - Supply (Vcc/Vdd)	Not Required
Max Supply Current	6mA
Input Type	Non-Inverting
Switch Type	General Purpose
Min Input Voltage	5.5V
Max Input Voltage	36V
Output Current per Channel	6A
Ratio - Input:Output	1:1
Voltage - Load	6V~36V
Driver Number of Bits	4
Fault Protection	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Rds On (Typ)	90m Ω (Max)
Built-in Protections	TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Height Seated (Max)	3.75mm
Width	7.5mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

VNQ690SP-E Product Details

VNQ690SP-E Overview

A Tube is used to package it.It is included in the package 10-PowerSOIC (0.370, 9.40mm Width).The LED driver is mounted as Surface Mount.The switch type of this switch is General Purpose.To ensure reliable operation, set the temperature to -40°C~150°C TJ.The LED driver has 4 outputs.A supply voltage of Not Required is required for it to operate.A maximum output voltage of N-Channel volts can be achieved by this LED driver.Status Flag features are available on the lighting driver.It is a member of the VNQ660 family.A total of 10 terminations have been found in it.The 10 pins are used for the operation of the system.It contains 4 functions.This operation requires the maximum output current to be decreased to 10A.Supply voltages of 13V allow for high efficiency.Surface Mount is mounted in the way of this lighting driver.10 pins are connected to it in total.In this LED driving board, there is 90mOhm resistance.This case results in a 10A output current.This LED driver is self-contained in an econtainer with a capacity of Peripheral Drivers.This part has a power supply of 13V volts.For maximum efficiency, the supply voltage should be set to 36V.Its maximum input voltage is 36V volts.As a minimum input voltage, it requires 5.5V volts.It requires 6mA current to operate.
