Name: 1-282822-2
Brand: TE Connectivity AMP Connectors
SKU: 1-282822-2
Price: 2.90000 USD
Availability: InStock

new-10%

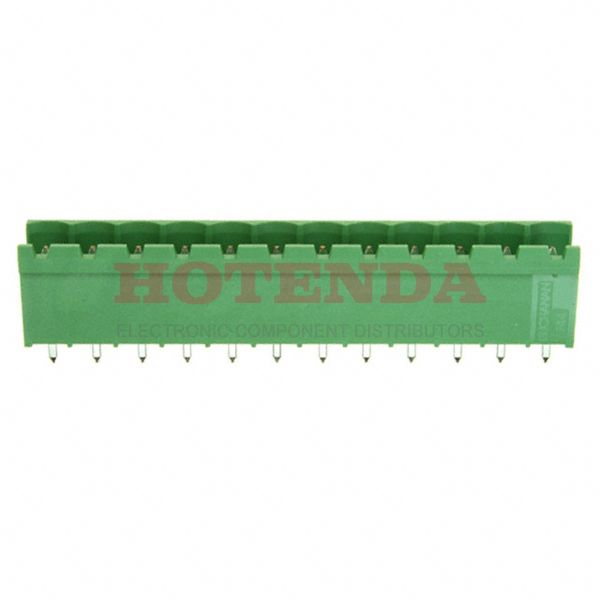

1-282822-2

Manufacturer part number:1-282822-2

Manufacturer:TE Connectivity AMP Connectors

Description:1-282822-2 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:1-282822-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Contact Material	Copper Alloy
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Buchanan
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Type	Header, Male Pins, Shrouded (2 Side)
Number of Positions	12
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.197 5.00mm
Orientation	Straight
Depth	8.35mm
Insulation Height	0.472 12.00mm
Current Rating	15A
Termination Style	Solder
Shrouding	Yes
Number of Contacts	12
Housing Color	Green
Voltage	300V
Contact Tail Length	0.138 3.50mm
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	15A
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	15A
Positions Per Level	12
Header Orientation	Vertical
Number of Positions Per Level	12
Length	60mm
Length - Tail	3.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1-282822-2 Product Details

1-282822-2 Overview

It comes in Header packaging.Through Hole is the mounting type for the device.An Bulk case is utilized for packaging the product.There is a product in the Buchanan Series.By Through Hole, the part is mounted.Operating temperature is -40°C~110°C.Other Header, Male Pins, Shrouded (2 Side) products share lots of benefits with this part.
