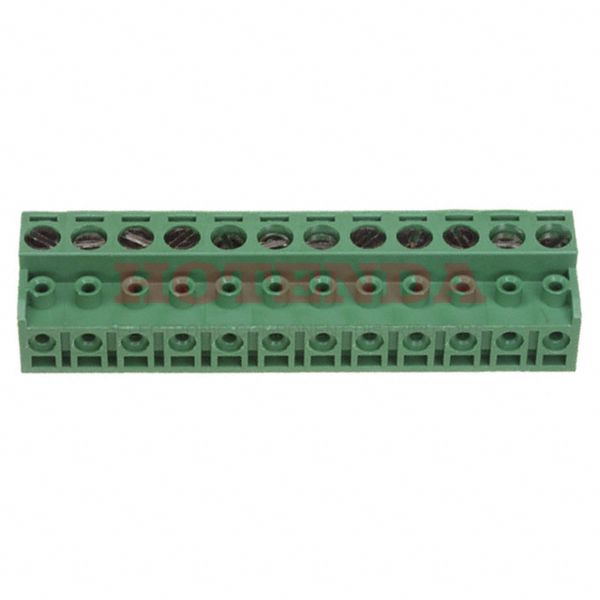

Name: 1-282830-2
Brand: TE Connectivity AMP Connectors
SKU: 1-282830-2
Price: 5.14000 USD
Availability: InStock

new-10%

1-282830-2

Manufacturer part number:1-282830-2

Manufacturer:TE Connectivity AMP Connectors

Description:1-282830-2 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:1-282830-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	17 Weeks
Lifecycle Status	ACTIVE (Last Updated: 4 months ago)
Contact Material	Phosphor Bronze
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2003
Series	Buchanan
Feature	Side Stacking
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Plug
Type	Plug for Unshrouded Header
Number of Positions	12
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.197 5.00mm
Orientation	Straight/Right Angle
Depth	13.9mm
Insulation Height	0.453 11.50mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	12
Housing Color	Green
Voltage	300V
Number of Circuits	12
Max Voltage Rating (AC)	300V
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Voltage - UL	300V
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	12A
Torque - Screw	0.68 Nm (6 Lb-In)
Positions Per Level	12
Plug Wire Entry	90°
Thread Size	M3
Wire Gauge or Range - mm²	0.05-2mm2
Wire Strip Length	6-7.5mm
Number of Positions Per Level	12
Screw Size	M3
Max Supply Voltage (AC)	300V
Length	60mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1-282830-2 Product Details

1-282830-2 Overview

Currently, it is packaged in Plug.This device's mounting type is Free Hanging (In-Line).We pack the product in a Bulk case.It's part of the Buchanan Series.The best time to use this device is when the temperature is below 105°C.The device must run at -40°C degrees.As a result of its Side Stacking feature, it possesses a great deal of power.It is mounted by Cable, Free Hanging.There are 12 circuits on this part.Operating temperature is set to -40°C~110°C.The benefts of this part are similar to those of other Plug for Unshrouded Header products.
