Name: 1-282834-2
Brand: TE Connectivity AMP Connectors
SKU: 1-282834-2
Price: 9.93000 USD
Availability: InStock

new

1-282834-2

Manufacturer part number:1-282834-2

Manufacturer:TE Connectivity AMP Connectors

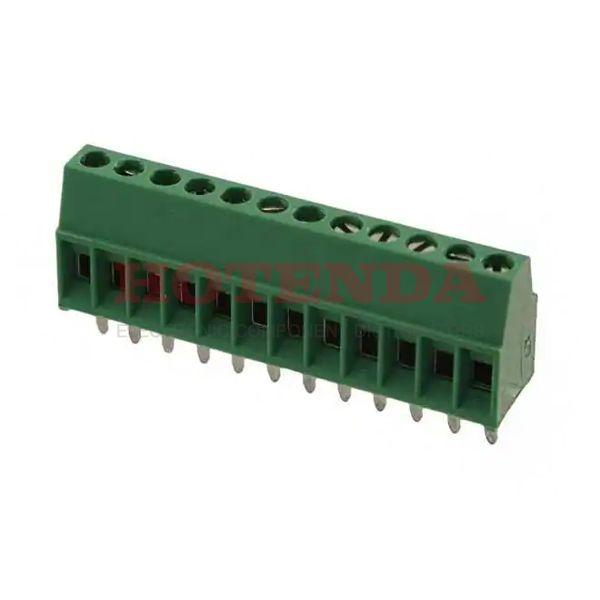

Description:0.100 2.54mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG Buchanan

Case Package:SOT-23

Datasheet:1-282834-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Factory Lead Time	11 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Steel, Stainless
Operating Temperature	-40°C~105°C
Packaging	Bulk
Series	Buchanan
Published	2007
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Color	Green
Number of Rows	1
Voltage - Rated	150V
HTS Code	8536.69.40.40
Pitch	0.100 2.54mm
Orientation	Straight
Depth	6.5mm
Current Rating	10A
Number of Contacts	12
Wire Gauge	16-30 AWG
ELV	Compliant
Max Voltage Rating (AC)	150V
Max Current Rating	10A
Plating	Brass, Steel
Number of Levels	1
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	30 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.2 Nm (1.7 Lb-In)
Number of Ways	12
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M1.6
Max Supply Voltage (AC)	150V
Length	30.94mm
Length - Tail	3.4mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1-282834-2 Product Details

1-282834-2 Overview

Packaging for this item is Receptacle.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Buchanan Series.Through Hole is used to mount the part.In this case, the device operates at -40°C~105°C Operating Temperature.
