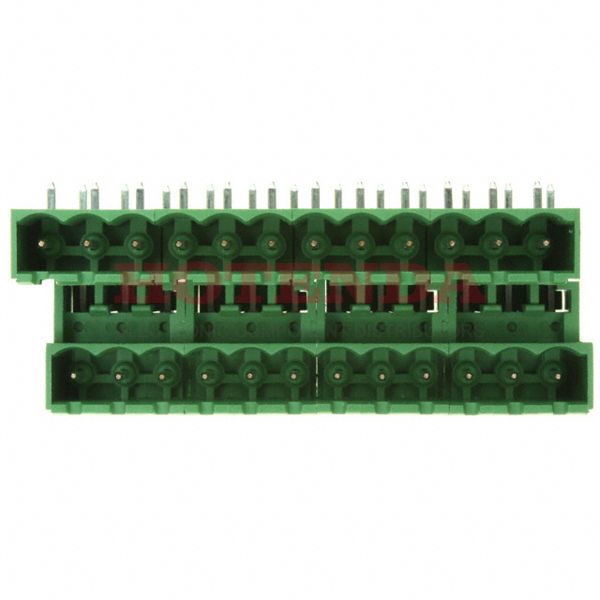

Name: 1-284061-2
Brand: TE Connectivity AMP Connectors
SKU: 1-284061-2
Availability: InStock

new-10%

1-284061-2

Manufacturer part number:1-284061-2

Manufacturer:TE Connectivity AMP Connectors

Description:1-284061-2 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:1-284061-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Contact Material	Copper Alloy
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Buchanan
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	24
Color	Green
Number of Rows	2
Voltage - Rated	300V
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	22.1mm
Insulation Height	0.902 22.90mm
Current Rating	15A
Termination Style	Solder
Voltage - Rated AC	300V
Shrouding	Yes
Number of Contacts	12
Housing Color	Green
Voltage	300V
Contact Tail Length	0.138 3.50mm
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	15A
Number of Levels	2
Current	12A
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	12A
Positions Per Level	12
Header Orientation	90°, Right Angle
Number of Positions Per Level	12
Length	65.54mm
Length - Tail	3.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1-284061-2 Product Details
