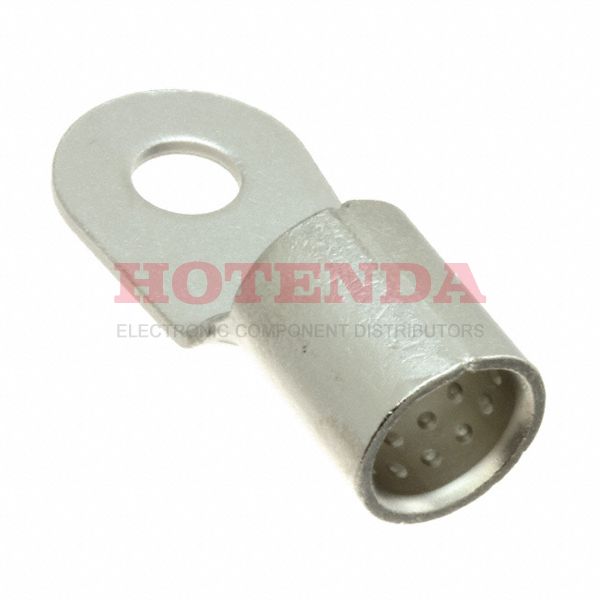

132076-1 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available on our website
SOT-23
132076-1 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Lifecycle Status
ACTIVE (Last Updated: 4 days ago)
Factory Lead Time
4 Weeks
Contact Material
Copper
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Packaging
Bulk
Series
Solistrand
Published
2003
Feature
Brazed Seam, Serrated Termination
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Crimp
ECCN Code
EAR99
HTS Code
8536.90.40.00
Contact Finish
Nickel
Wire Gauge
1/0 AWG
ELV
Compliant
Terminal and Terminal Block Type
RING TERMINAL
Insulation
Non-Insulated
Terminal Type
Circular
Stud/Tab Size
8 Stud
Heavy Duty
No
Stud Diameter
8.3312 mm
Number of Holes
1
Stud Size
M8
Length
48.895mm
Thickness
0.071 1.80mm
Length - Overall
1.969 50.00mm
Diameter - Inside
11.28 mm
Width - Outer Edges
0.807 20.50mm
Tongue Thickness
1.78mm
RoHS Status
RoHS Compliant
In-Stock:357 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$18.73000
$18.73
10
$16.90400
$169.04
25
$16.19600
$404.9
50
$15.18360
$759.18
100
$14.67750
$1467.75
250
$13.86768
$3466.92
500
$13.46280
$6731.4
132076-1 Product Details
Description: The TE Connectivity / AMP Terminals 132076-1 Ring Connectors are designed for use in a variety of electrical applications. They are constructed from a durable, corrosion-resistant material and feature a 1/0 AWG #8 crimp connection. The connectors are designed to provide a secure and reliable connection for a variety of applications.
Features: - Durable and corrosion-resistant construction - 1/0 AWG #8 crimp connection - Secure and reliable connection - Easy to install and use
Applications: The TE Connectivity / AMP Terminals 132076-1 Ring Connectors are suitable for a variety of electrical applications, including automotive, marine, and industrial applications. They can be used to connect wires, cables, and other components in a secure and reliable manner.
