Name: 1546074-7
Brand: TE Connectivity AMP Connectors
SKU: 1546074-7
Price: 5.99000 USD
Availability: InStock

new-10%

1546074-7

Manufacturer part number:1546074-7

Manufacturer:TE Connectivity AMP Connectors

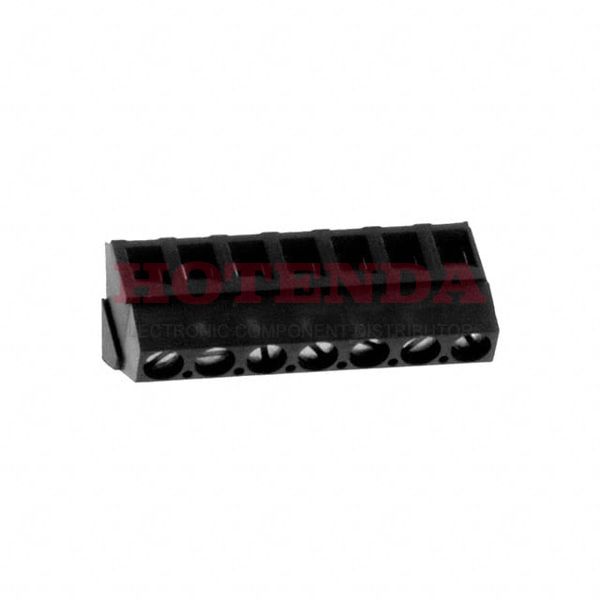

Description:0.200 5.08mm Black Bulk Polyamide (PA66), Nylon 6/6 Through Hole 35° (145°) Angle with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan

Case Package:SOT-23

Datasheet:1546074-7 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Operating Temperature	-40°C~105°C
Packaging	Bulk
Series	Buchanan
Published	2007
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw, Solder
ECCN Code	EAR99
Connector Type	Receptacle
Color	Black
Number of Rows	1
Voltage - Rated	300V
Additional Feature	PA 6-6,UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Current Rating	17.5A
Number of Contacts	7
Lead Length	3.8mm
Wire Gauge	12-30 AWG
ELV	Compliant
Max Current Rating	17.5A
Number of Levels	1
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	30 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.79 Nm (7.0 Lb-In)
Number of Ways	7
Safety Approval	UL
Mating Orientation	35° (145°) Angle with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Length - Tail	3.81mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1546074-7 Product Details

1546074-7 Overview

Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Buchanan Series.Other features include PA 6-6,UL 94V-0, to name just a few.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.Devices operate at -40°C~105°C operating temperatures.
