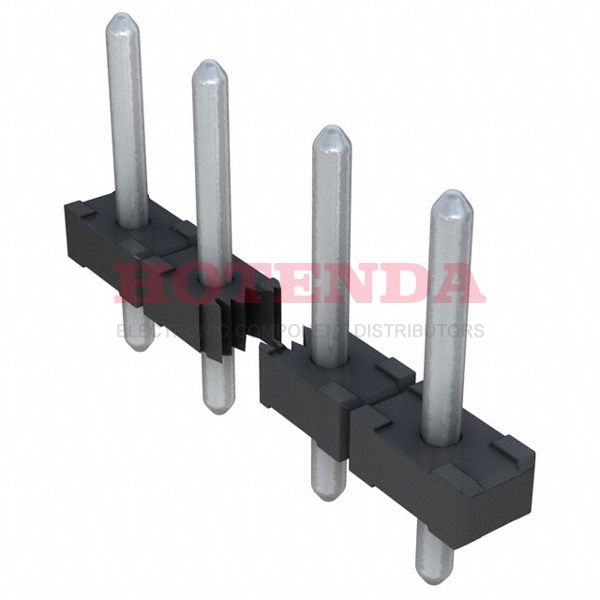

Name: 1546931-5
Brand: TE Connectivity AMP Connectors
SKU: 1546931-5
Price: 1.83000 USD
Availability: InStock

new-10%

1546931-5

Manufacturer part number:1546931-5

Manufacturer:TE Connectivity AMP Connectors

Description:1546931-5 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:1546931-5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Packaging	Bulk
Published	2007
Series	Buchanan
Feature	Side Stacking
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Type	Header, Male Pins, Unshrouded
Number of Positions	5
Color	Black
Number of Rows	1
Voltage - Rated	300V
Pitch	0.197 5.00mm
Orientation	Straight
Depth	2.8mm
Insulation Height	0.079 2.00mm
Current Rating	12A
Termination Style	Solder
Voltage - Rated AC	300V
Number of Contacts	5
Housing Color	Black
Lead Length	6.985mm
Voltage	300V
Contact Tail Length	0.138 3.50mm
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	12A
Number of Levels	1
Current	12A
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	12A
Positions Per Level	5
Header Orientation	Vertical
Number of Positions Per Level	5
Length	25mm
Length - Tail	3.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1546931-5 Product Details

1546931-5 Overview

The packaging is Header.This device has a mounting type of Through Hole.Bulk cases are used to package the product.This product is part of the Buchanan Series.A number of aspects of its Side Stacking feature make it more powerful.It is mounted by Through Hole.The benefts of this part are similar to those of other Header, Male Pins, Unshrouded products.
