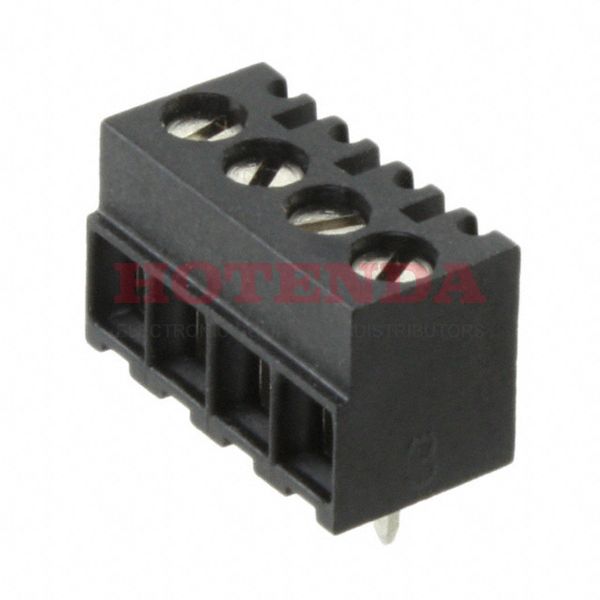

Name: 1776112-4
Brand: TE Connectivity AMP Connectors
SKU: 1776112-4
Price: 2.57000 USD
Availability: InStock

new-10%

1776112-4

Manufacturer part number:1776112-4

Manufacturer:TE Connectivity AMP Connectors

Description:0.138 3.50mm Black Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-28 AWG Buchanan

Case Package:SOT-23

Datasheet:1776112-4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 1 day ago)
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Copper Alloy - Tin Plated
Clamp Material - Plating	Copper Alloy - Nickel Plated
Screw Material - Plating	Copper Alloy - Nickel Plated
Operating Temperature	-40°C~110°C
Packaging	Bulk
Series	Buchanan
Published	2007
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Color	Black
Number of Rows	1
Voltage - Rated	150V
Pitch	0.138 3.50mm
Orientation	Straight
Current Rating	12A
Wire Gauge	16-28 AWG
ELV	Compliant
Max Voltage Rating (AC)	150V
Max Current Rating	12A
Number of Levels	1
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Number of Ways	4
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M2
Number of Positions Per Level	4
Length - Tail	2.6mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1776112-4 Product Details

1776112-4 Overview

It comes in Receptacle packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the Buchanan Series of products.The part is mounted by Through Hole.The device runs in -40°C~110°C Operating Temperature.
