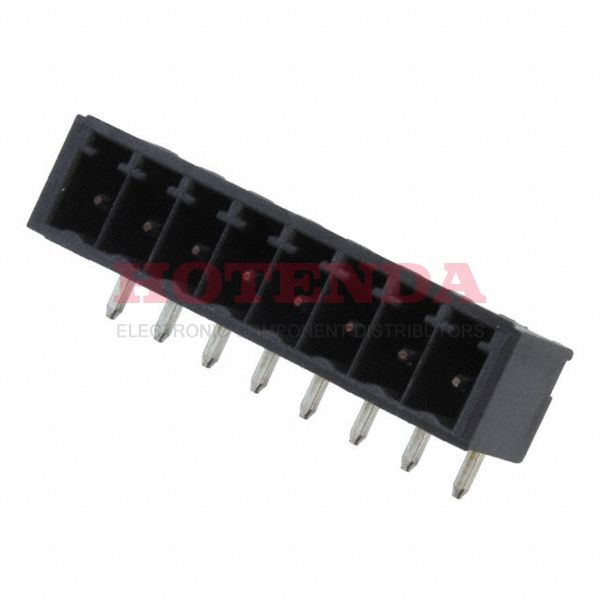

Name: 1776134-8
Brand: TE Connectivity AMP Connectors
SKU: 1776134-8
Price: 2.31000 USD
Availability: InStock

new-10%

1776134-8

Manufacturer part number:1776134-8

Manufacturer:TE Connectivity AMP Connectors

Description:1776134-8 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:1776134-8 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	17 Weeks
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Buchanan
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	8
Color	Black
Number of Rows	1
Voltage - Rated	300V
Pitch	0.138 3.50mm
Insulation Height	0.285 7.25mm
Current Rating	11A
Termination Style	Solder
Voltage - Rated AC	300V
Number of Contacts	8
Housing Color	Black
Voltage	300V
Contact Tail Length	0.134 3.40mm
ELV	Compliant
Max Current Rating	11A
Number of Levels	1
Current	11A
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	11A
Positions Per Level	8
Header Orientation	90°, Right Angle
Number of Positions Per Level	8
Length - Tail	3.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1776134-8 Product Details

1776134-8 Overview

A Header package is included with it.Its mounting type is Through Hole.Bulk cases are used to package the product.A member of the Buchanan Series.Through Hole mounts the part.Operating temperature is set to -40°C~110°C.As with other Header, Male Pins, Shrouded (4 Side) products, this part also offers a wide range of benefits.
