Name: 1776259-2
Brand: TE Connectivity AMP Connectors
SKU: 1776259-2
Price: 2.26000 USD
Availability: InStock

new-10%

1776259-2

Manufacturer part number:1776259-2

Manufacturer:TE Connectivity AMP Connectors

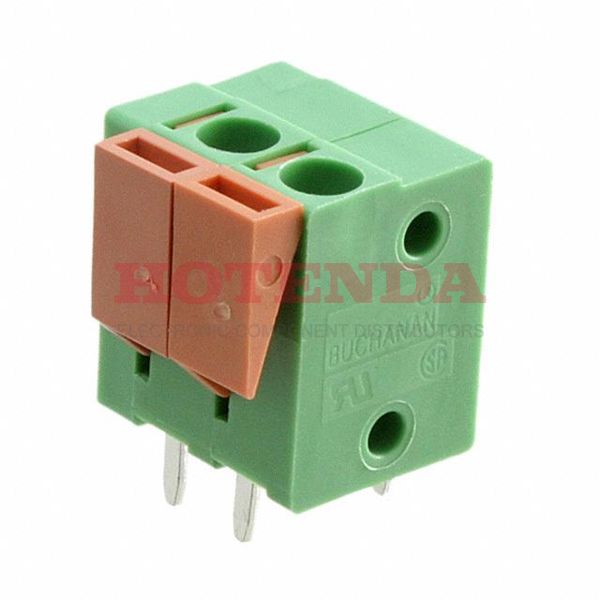

Description:0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screwless - Leg Spring, Push-In Spring 1 Levels 14-22 AWG Buchanan

Case Package:SOT-23

Datasheet:1776259-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 5 days ago)
Factory Lead Time	14 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Nickel Tin Plated
Clamp Material - Plating	Steel, Stainless
Operating Temperature	-55°C~105°C
Packaging	Bulk
Series	Buchanan
Published	2007
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	2
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.197 5.00mm
Orientation	Straight
Depth	12.86mm
Current Rating	10A
Approval Agency	CSA, UL
Number of Contacts	2
Housing Color	Green
Wire Gauge	14-22 AWG
Voltage	300V
ELV	Compliant
Number of Circuits	2
Max Voltage Rating (AC)	300V
Max Current Rating	10A
Plating	Steel
Number of Levels	1
Current	10A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	22 AWG
Number of Poles	2
Positions Per Level	2
Mating Orientation	Vertical with Board
Wire Termination	Screwless - Leg Spring, Push-In Spring
Number of Positions Per Level	2
Max Supply Voltage (AC)	300V
Length	12.4968mm
Length - Tail	3.302mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1776259-2 Product Details

1776259-2 Overview

Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Buchanan Series.If the temperature is below 105°C, it's best to use it.-55°C is the minimum temperature for this device.There is a mounting hole at Through Hole.This part has 2 circuits.Devices operate at -55°C~105°C operating temperatures.
