Name: 1776260-8
Brand: TE Connectivity AMP Connectors
SKU: 1776260-8
Price: 7.33000 USD
Availability: InStock

new

1776260-8

Manufacturer part number:1776260-8

Manufacturer:TE Connectivity AMP Connectors

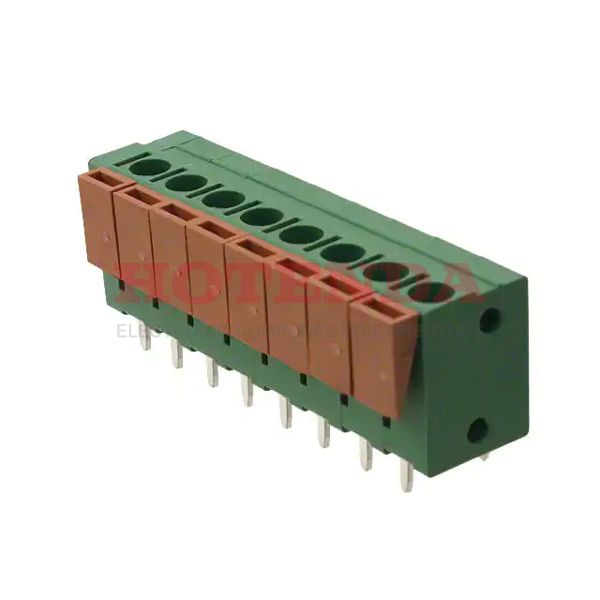

Description:0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screwless - Leg Spring, Push-In Spring 1 Levels 14-22 AWG Buchanan

Case Package:SOT-23

Datasheet:1776260-8 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 1 day ago)
Factory Lead Time	14 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Nickel Tin Plated
Clamp Material - Plating	Steel, Stainless
Operating Temperature	-55°C~105°C
Packaging	Bulk
Series	Buchanan
Published	2007
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
Connector Type	Receptacle
Number of Positions	8
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.200 5.08mm
Orientation	Straight
Current Rating	10A
Approval Agency	CSA, UL
Number of Contacts	8
Housing Color	Green
Wire Gauge	14-22 AWG
Voltage	300V
ELV	Compliant
Number of Circuits	8
Max Current Rating	10A
Plating	Steel
Number of Levels	1
Current	10A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	14 AWG
Number of Poles	8
Positions Per Level	8
Mating Orientation	Vertical with Board
Wire Termination	Screwless - Leg Spring, Push-In Spring
Number of Positions Per Level	8
Length	40.64mm
Length - Tail	3.1mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1776260-8 Product Details

1776260-8 Overview

The product comes in a package of Receptacle.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Buchanan Series.Use it when the temperature is below 105°C.Temperatures below -55°C are required for this device to operate.It is mounted by Through Hole.It has 8 circuits.It operates at an operating temperature of -55°C~105°C.
