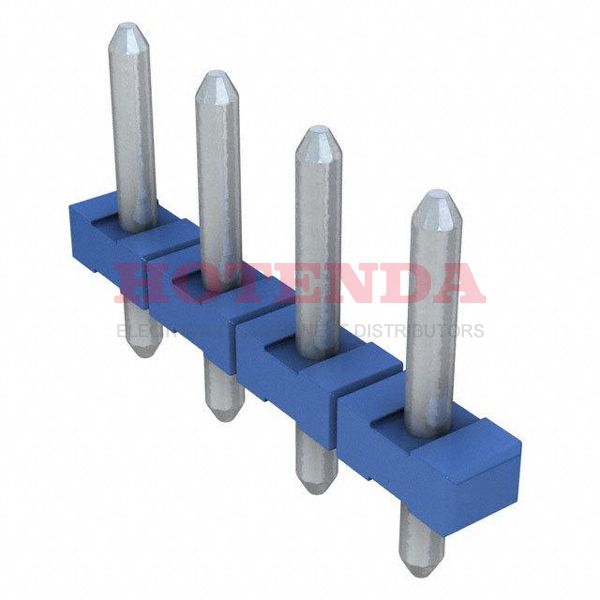

Name: 1776489-4
Brand: TE Connectivity AMP Connectors
SKU: 1776489-4
Price: 0.26000 USD
Availability: InStock

new-10%

1776489-4

Manufacturer part number:1776489-4

Manufacturer:TE Connectivity AMP Connectors

Description:1776489-4 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:1776489-4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	23 Weeks
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Contact Material	Brass
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-55°C~105°C
Packaging	Bulk
Published	2007
Series	Buchanan
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Header
Type	Header, Male Pins, Unshrouded
Color	Blue
Number of Rows	1
Voltage - Rated	250V
Pitch	0.197 5.00mm
Insulation Height	0.079 2.00mm
Current Rating	10A
Termination Style	Solder
Voltage - Rated AC	250V
Lead Length	6.985mm
Voltage	250V
Contact Tail Length	0.138 3.50mm
ELV	Compliant
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	14 AWG
Wire Gauge (Min)	22 AWG
Contact Mating Finish	Tin
Number of Ways	14
Header Orientation	Vertical
Number of Positions Per Level	4
Wire Cross Section	2 mm2
Length - Tail	3.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1776489-4 Product Details

1776489-4 Overview

The product comes in a package of Header.Mounting type is Through Hole.It is necessary to use a Bulk case for packaging the product.Product number Buchanan belongs to the Buchanan Series.It is mounted by Through Hole.Running in -55°C~105°C Operating Temperature.Other Header, Male Pins, Unshrouded products share lots of benefits with this part.
