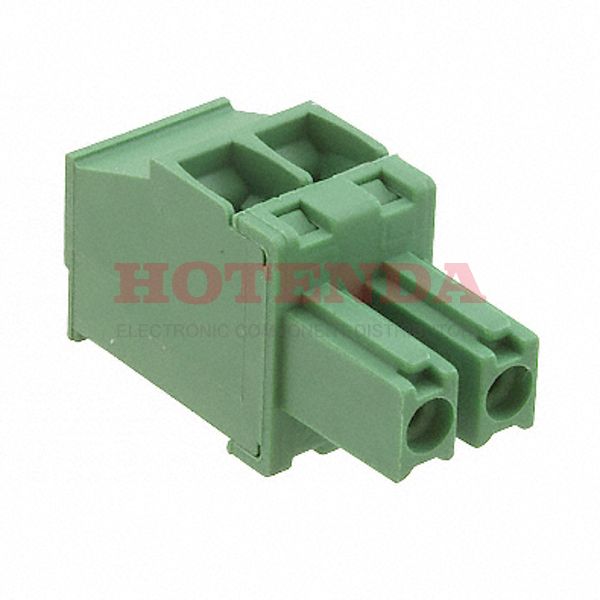

Name: 1986374-2
Brand: TE Connectivity AMP Connectors
SKU: 1986374-2
Availability: InStock

new-10%

1986374-2

Manufacturer part number:1986374-2

Manufacturer:TE Connectivity AMP Connectors

Description:1986374-2 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:1986374-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Lifecycle Status	ACTIVE (Last Updated: 4 months ago)
Contact Material	Phosphor Bronze
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Nylon
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2009
Feature	Side Stacking
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Plug
Type	Plug, Female Sockets
Number of Positions	2
Max Operating Temperature	110°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.150 3.81mm
Orientation	Straight
Insulation Height	0.756 19.20mm
Current Rating	11A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	300V
Number of Contacts	2
Housing Color	Green
Voltage	300V
ELV	Compliant
Number of Circuits	2
Max Voltage Rating (AC)	300V
Max Current Rating	11A
Number of Levels	1
Current	11A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	14 AWG
Number of Poles	2
Contact Mating Finish	Tin
Voltage - UL	300V
Wire Gauge or Range - AWG	14-30 AWG
Current - UL	11A
Positions Per Level	2
Plug Wire Entry	90°
Thread Size	M2
Wire Gauge or Range - mm²	0.05-2mm2
Number of Positions Per Level	2
Screw Size	M2
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1986374-2 Product Details

1986374-2 Overview

This product is packaged in a Plug box.Free Hanging (In-Line) is the mounting type.This product is packaged in a case marked Bulk.Use it below 110°C.A minimum operating temperature of -40°C is required for this device.This feature makes it more powerful in a number of ways due to its Side Stacking feature.There's a Cable, Free Hanging on the part.2 circuits make up the part.Operating temperature is set to -40°C~110°C.There are a lot of advantages this part has in common with other Plug, Female Sockets parts.
