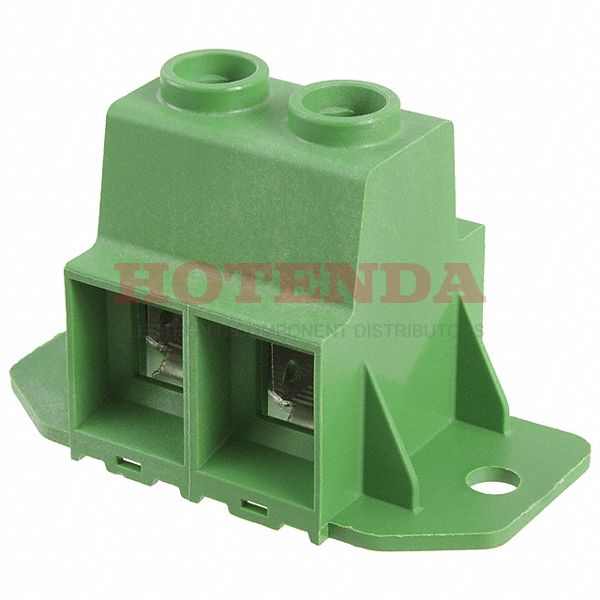

Name: 1986715-2
Brand: TE Connectivity AMP Connectors
SKU: 1986715-2
Price: 28.64000 USD
Availability: InStock

new

1986715-2

Manufacturer part number:1986715-2

Manufacturer:TE Connectivity AMP Connectors

Description:0.591 15.00mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw 1 Levels 1-20 AWG

Case Package:SOT-23

Datasheet:1986715-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	21 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Copper Alloy - Tin Plated
Clamp Material - Plating	Steel - Tin Plated
Screw Material - Plating	Steel - Nickel Plated
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2012
Feature	Flange (Mounting)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Receptacle
Color	Green
Number of Rows	2
Voltage - Rated	600V
HTS Code	8536.69.40.40
Pitch	0.591 15.00mm
Orientation	Straight
Current Rating	135A
Lead Length	5mm
Wire Gauge	1-20 AWG
Voltage	600V
ELV	Compliant
Max Current Rating	130A
Plating	Steel, Tin
Number of Levels	1
Wire Gauge (Max)	20 AWG
Wire Gauge (Min)	1 AWG
Wire/Cable Gauge	30 AWG
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	2.1-2.5 Nm (1.5-1.8 LbIn)
Mating Orientation	Horizontal with Board
Wire Termination	Screw
Screw Thread	M5
Length - Tail	5mm
REACH SVHC	Unknown
Radiation Hardening	No
RoHS Status	RoHS Compliant

1986715-2 Product Details

1986715-2 Overview

The product comes in a package of Receptacle.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.It is more powerful in many ways due to its Flange (Mounting) feature.It is mounted by Through Hole.It operates at an operating temperature of -40°C~110°C.

1986715-2 Features

1986715-2 Applications

There are a lot of TE Connectivity AMP Connectors
1986715-2 Terminal Blocks applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology

Quantity	Unit Price	Ext. Price
1	$20.31000	$20.31
10	$19.50200	$195.02
25	$18.82520	$470.63
50	$18.14800	$907.4
100	$17.60630	$1760.63
250	$17.26768	$4316.92
500	$16.92910	$8464.55

1986715-2

1986715-2

Technical Specifications

In-Stock:263 items

Pricing & Ordering
